3 www.timberk.com electric floor standing air onditioner ortable type (single case)
15. Connect the air conditioner only to 220-230 V 50 Hz mains. If necessary,
ask your power suppliers to give characteristics of your mains.
16. The appliance is not intended for use by children and persons with
reduced physical, sensory or mental capabilities, or a lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by an individual responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
IMPORTANT!

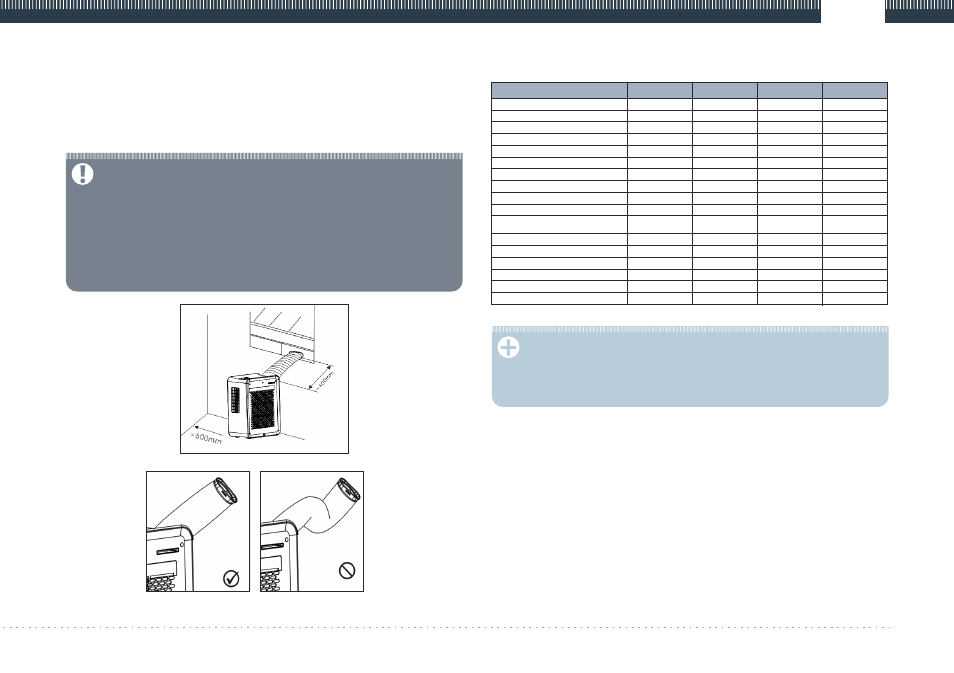

Efficient heating and cooling require to:
1) Ensure at least 50 cm of free space on the filtering side of the unit
(Fig. 1).
2) Extend the air duct not more than 400 mm. The hose must be
located in parallel to the surface. It is forbidden to fold the hose! (see
Fig. 2)
3) Upon defreezing a DF symbol is indicated on the display screen
(except for AC TIM 05 P4, AC TIM 07 P4, AC TIM 09H P4).
3.Technical characteristics
Tab.1
SCOPE OF DELIVERY
1. Household air conditioner 1 pc.
2. Remote control* (batteries are not supplied, 1,5V UM4 AAA CR03
batteries are required) 1 pc.
3. The adapter for air duct 1 pc.
4. Air outlet hose 1 pc.
5. Removable grille 1 pc.
* - only for AC TIM 09HE P4.
NOTICE.
The manufacturer reserves the right to make changes in the design,
scope of delivery, product manufacturing technology, as well as
change its technical characteristics to improve its consumer and
technical properties without prior notice.
ENGLISH
5000 (1,5) 7000 (2,0)
Наименование
Capacity (cooling), Wh(kW)
Capacity (heating), Wh(kW)
Power consumption (cooling), W
Power consumption (heating), W
Supply voltage V/Hz
Current (cooling/heating), A
3 Air flow m /h
Dehumidification capacity, I/day
Noise level, dB(A)
Refregerant
Energy efficiency class
(cooling/heating)
Electrical protection
Degree of moisture protection
Net weight, kg
Gross weiht, kg
Device dimensions, mm
Package dimensions, mm
9000 (2,6) 9000 (2,6)
5000 (1,5) 7000 (2,0) 9000 (2,6) 9000 (2,6)
650 900 1100 1100
500 700 950 950
220/50 220/50 220/50 220/50
3,0/2,3 4,1/3,2 5,0/4,3 5,0/4,3
280 280 360 360
25 30 50 50
50 50 52 52
R410
B
R410
B
R410
B
R410
B
I class
IPХ0
I class
IPХ0
I class
IPХ0
I class
IPХ0
22,0 22,5 23,0 23,0
23,5 24,0 24,5 24,5
300x455x630
330x485x660
300x455x630
330x485x660
300x455x630
330x485x660
300x455x630
330x485x660
Fig. 1
Fig. 2
AC TIM 05H P4 AC TIM 07H P4 AC TIM 09H P4 AC TIM 09H P4 AC TIM 09HE P4
