www.timberk.com Electric window air conditioner (one-body type)
ENGLISH
3. TECHINCAL CHARACTERISTICS
Table 1.
DELIVERY SET
1. Domestic conditioner 1
2. Remote control* (batteries are not attached, 1.5 V batteries
U 4
R:03 are needed) 1
3. Drainage tube 1
*- only for AC TIM 09H W1E, AC TIM12H W1E models
NOTE
The manufacturer reserves the right to make modifications in
design, delivery set and manufacturing technology of the product
and to change its technical characteristics without prior notification
with a view to improve its consumer and technical properties.

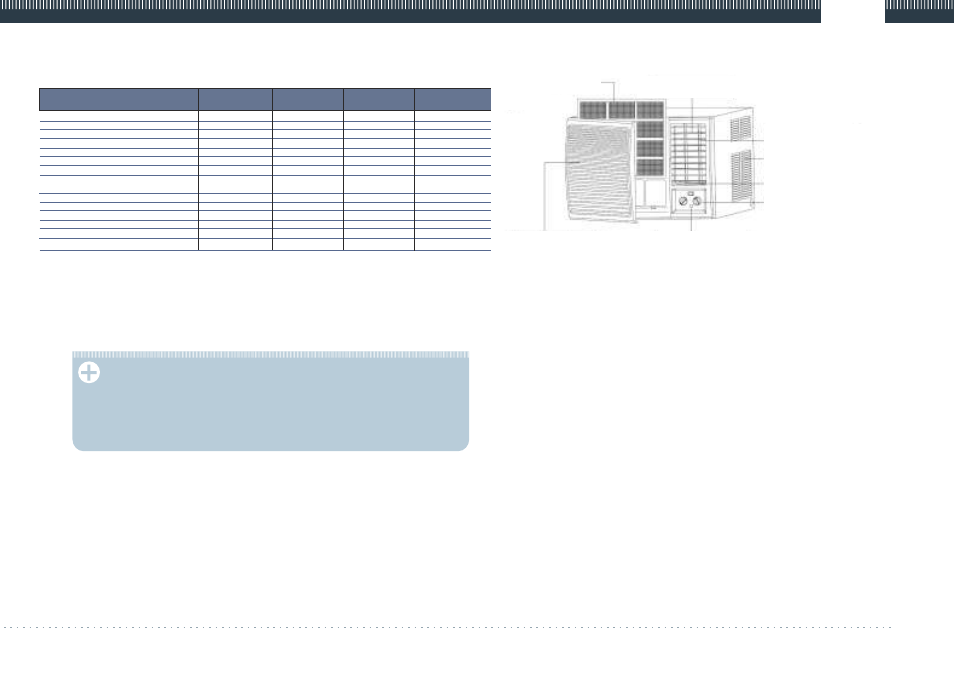

Fig.1
4. MOBILE CONDITIONER DESCRIPTION
(Fig.1)
1. Air filter
2. Horizontal gills
3. Vertical gills
4. Air-inlet grating
5. Direction-control switch for gills
6. Control panel
7. Compressor operation lamp
8. Air-inlet grating
1
2
3
4
5
6
7
8
Model
AC TIM 05C W1M AC TIM 07C W1M AC TIM 09H W1E AC TIM 12H W1E
Power (cooling) BTU (kW)
Power input (cooling)
Supply voltage V/Hz
Amperage (cooling) А
Air flow m3/h
Noise level dB(А)
Freon type
Energy-efficiency class (cooling/heating)
Electrical-protection class
Level of moisture protection
Net weight (kg)
Gross weight (kg)
Device size (mm)
Packed size (mm)
5000 (1,46)
542
220/50
2,6
220
43-61
R410A
A
I
IP24
18,0
20,0
410Ч300Ч344
480Ч400Ч380
7000 (2,0)
752
220/50
3.3
380
50-59
R410A
A
I
IP24
27,0
32,0
482Ч340Ч510
560Ч560Ч380
9 000 (2,5)
1000
220/50
4.8
380
50-59
R410A
B
I
IP24
27,0
32,0
482Ч340Ч510
560Ч560Ч380
12 000 (3,2)
1300
220/50
5.8
550
50-60
R410A
B
I
IP24
38,0
45,0
610Ч385Ч536
695Ч580Ч428
