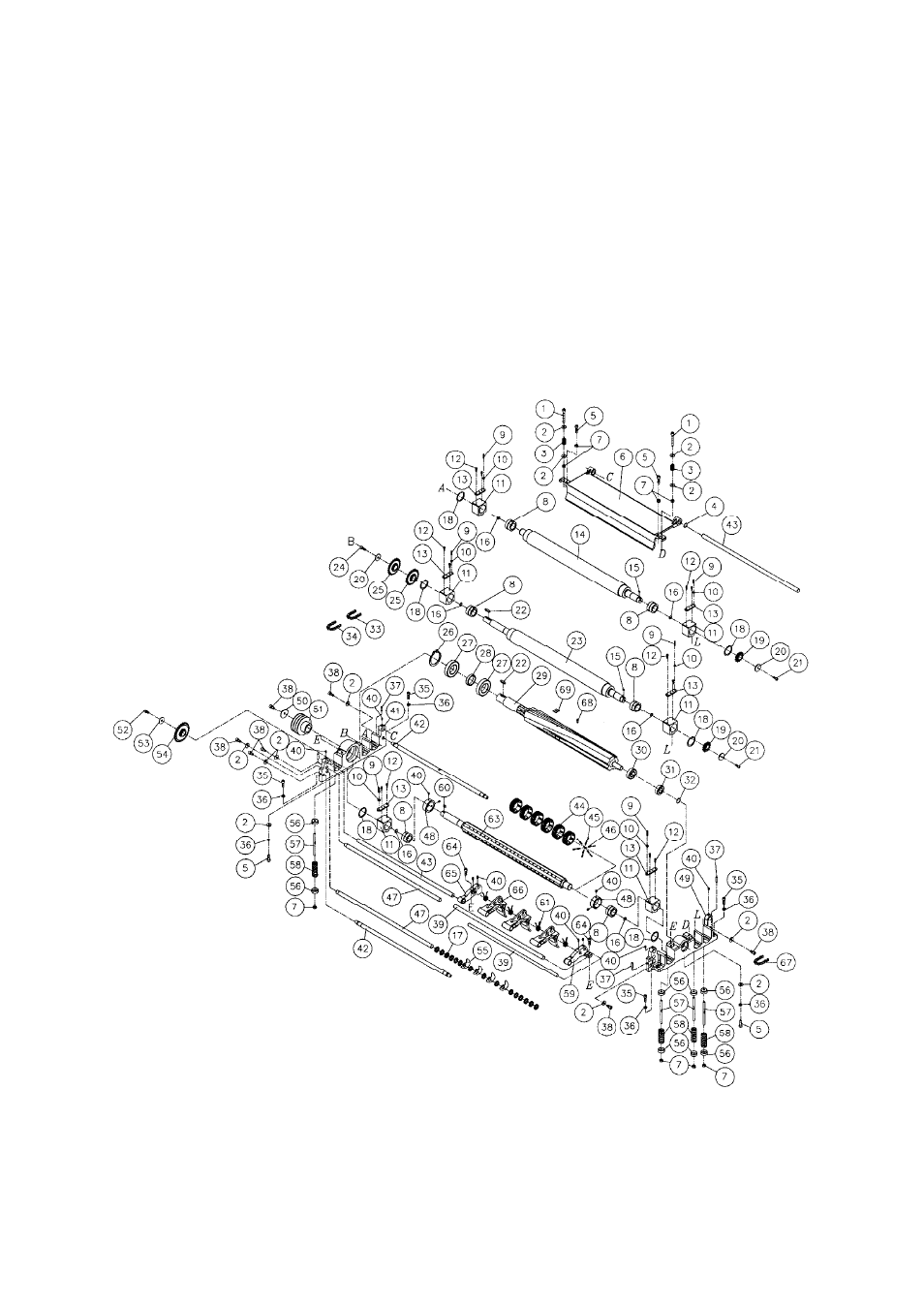

Parts List: Cutterhead Assembly
Index No. Part No. Description Size Qty
57 ............. 6012163 ................... Shaft .................................................................... .................................... 6
58 ............. 6012162 ................... Spring .................................................................. .................................... 6
59 ............. WP2510-259 ............ Right Bracket ....................................................... .................................... 1
60 ............. WP2510-260 ............ Key ....................................................................... 8x7x16 ........................ 1
61 ............. 6012175 ................... Spring .................................................................. .................................. 11
63 ............. WP2510-263 ............ Infeed Roller Shaft ............................................... .................................... 1
64 ............. TS-1505041 ............. Socket Head Cap Screw ..................................... M10x30 ....................... 2
65 ............. WP2510-265 ............ Left Bracket .......................................................... .................................... 1
66 ............. 6012174 ................... Chipbreaker ......................................................... .................................. 11
67 ............. WP2510-267 ............ Chain ................................................................... #40 x 24P ................... 1
68 ............. JWP208HH-111 ....... Knife Insert Screw ................................................ #10-32 x 1/2” .......... 174
69 ............. 1791212 ................... Knife Insert (sold as set of 10) ............................. ................................ 174
70 ............. JJ6HH-113 ............... Star Point Screwdriver (not shown) ..................... .................................... 2
