Installation/Connection
Connection

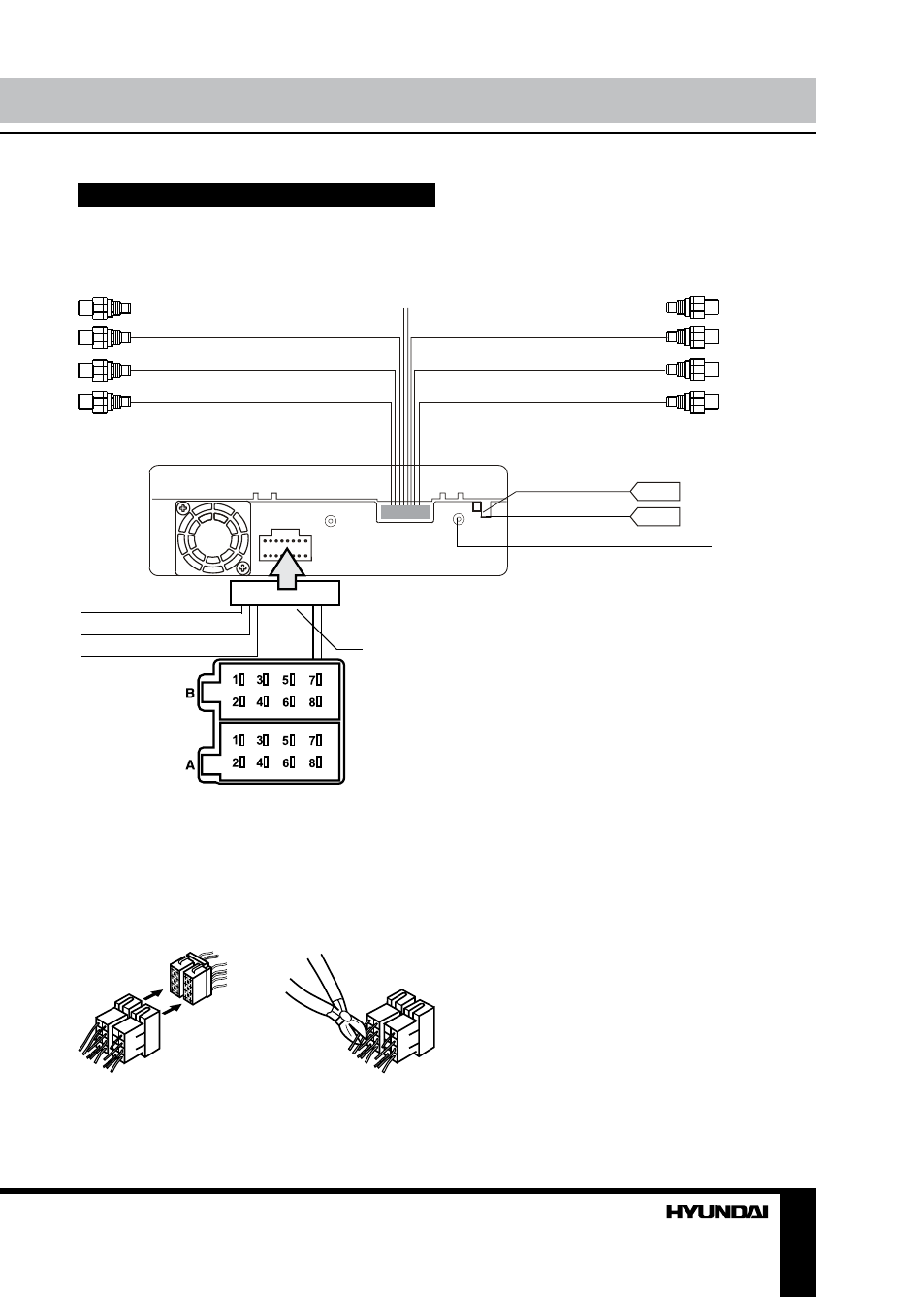

Connection diagram
Parking (brown)
Pink (lamp in)
TV antenna
Radio antenna
GPS antenna jack (option
for models equipped with
navigation function)
ISO connector
Reverse (orange)
12
AUX audio in
(black line with red and
white heads)
(black line with yellow
head)
(grey line with yellow
head)
(brown line with brown
head)
(grey line with yellow
head)
(brown line with yellow
head)
(light grey line with red
and white head)
(dark grey line with red
and white head)
AUX video in
Video out 2 Subwoofer
Video out 1 Reverse video in
Rear RCA Front RCA
Using the ISO Connector
1. If your car is equipped with the ISO
connector, then connect the ISO connectors as
illustrated.
2. For connections without the ISO
connectors, check the wiring in the vehicle
carefully before connecting, incorrect connection
may cause serious damage to this unit.
Cut the connector, connect the colored leads
of the power cord to the car battery as shown
in the colour code table below for speaker and
power cable connections. 1. 2.
