62 GW23-002_v02
1. Plug the unit to an electric outlet.
2. Press the On/Off button (9) to start the unit. Repress the button to switch off the unit.
3. After pressing the On/Off button (9) the unit will operate at II speed for about 3 sec-
onds. After about 3 seconds it shall automatically switch to the I speed, unless a differ-
ent speed is selected. Press the “SPEED” button to change the speed. The fan speed
will increase from I to IV. When the maximum speed is reached (IV), the speed shall
start once again to increase from I to IV each time you press the “SPEED” (7) button.
4. During operation you may press the “TIMER” (8) button to set the desired run time
(hours). The value on the display increases in 1 hour increments from 1 to 12. When
the maximum value is reached, the value shall start once again to increase from 1 to
12 each time you press the “TIMER” (8) button. If the operation time of the unit is
not set using the “TIMER” (8) button, the unit shall operate until it is switched off by
pressing the On/Off button (9).
5. Press the “ION” (11) button while the unit is operating to switch on the ionizer. Press
the button again to turn off the ionizer.
6. The appliance is equipped with a HEPA filter replacement indicator (1). When all the
HEPA bars are lit, replace the HEPA filter (1) and switch on the appliance, press and
hold the “RESET” (10) while switching the unit on once again. You will hear three
beeps and the HEPA bars will turn off which means the unit is ready for a new cycle
from the filter.
NOTICE: If the air quality is extremely poor you may replace the HEPA (1) filter be-
fore all the bars are lit. If so, press and hold the RESET (10) button for 3 seconds
until you hear three consecutive beeps, then all the bars are off and the unit is
ready for a new cycle from the filter.

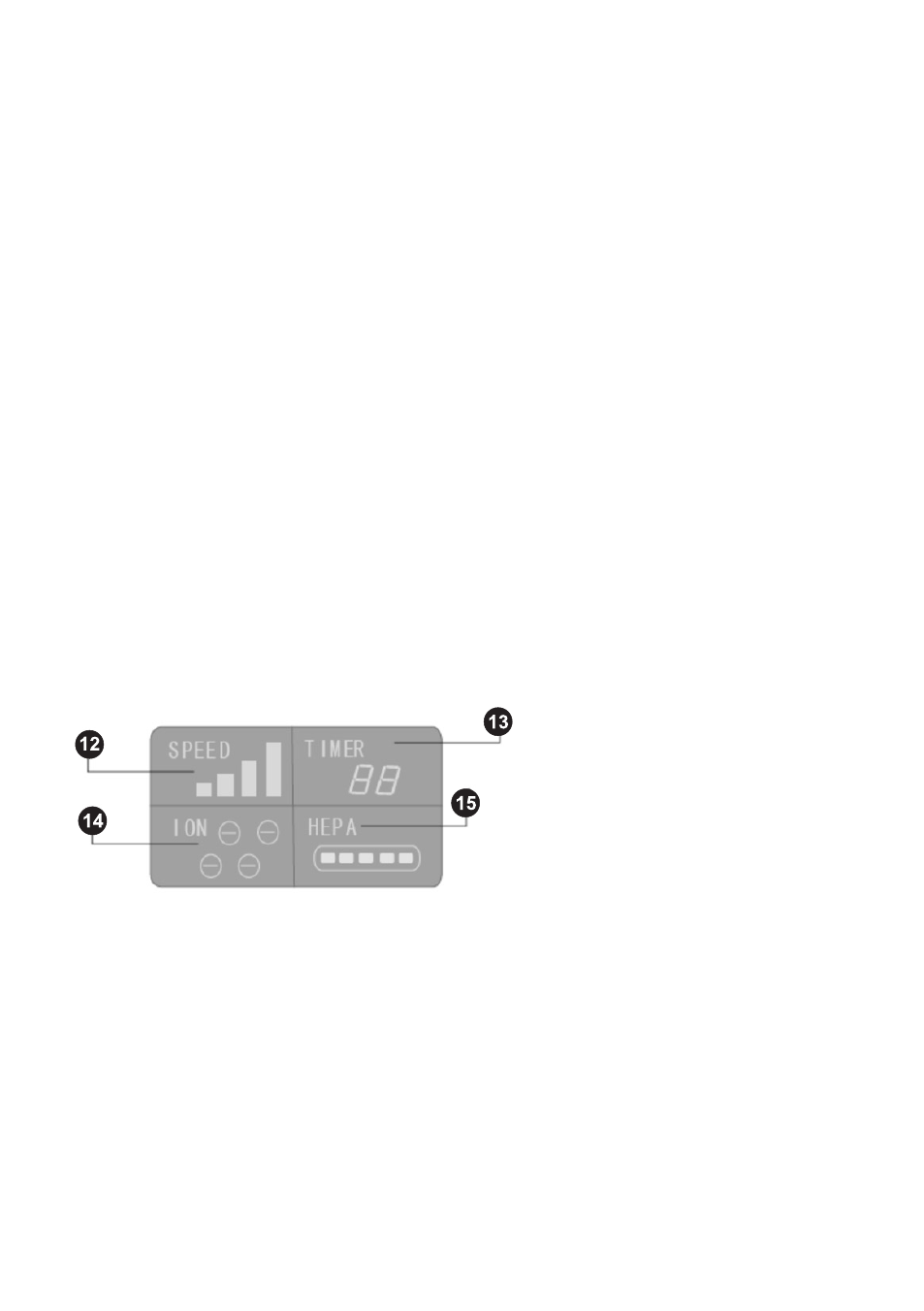

LED display
12. SPEED indicator.
13. “TIMER” indicator.
14. “ION” indicator.
15. HEPA filter replacement indicator.
SPEED indicator (12)
The speed of the air purifier ranges from I to IV. The speed of the unit is indicated on the
display by means of vertical bars. The first bar is lit when the unit is operating on I speed.
Two lit bars indicate that the unit is operating on II speed, three lit bars indicate the III
speed. When all four bars are lit, the unit is operating on the highest, IV speed.
TIMER indicator (13)
The digits of the timer from 1 to 12 indicate the number of hours preset. Once the time is
set, the timer will start to count down until zero. Then the unit will turn off automatically.
“ION” indicator (14)
All four symbols light when the ionizer is working, they switch off when the ionizer stops
working.
