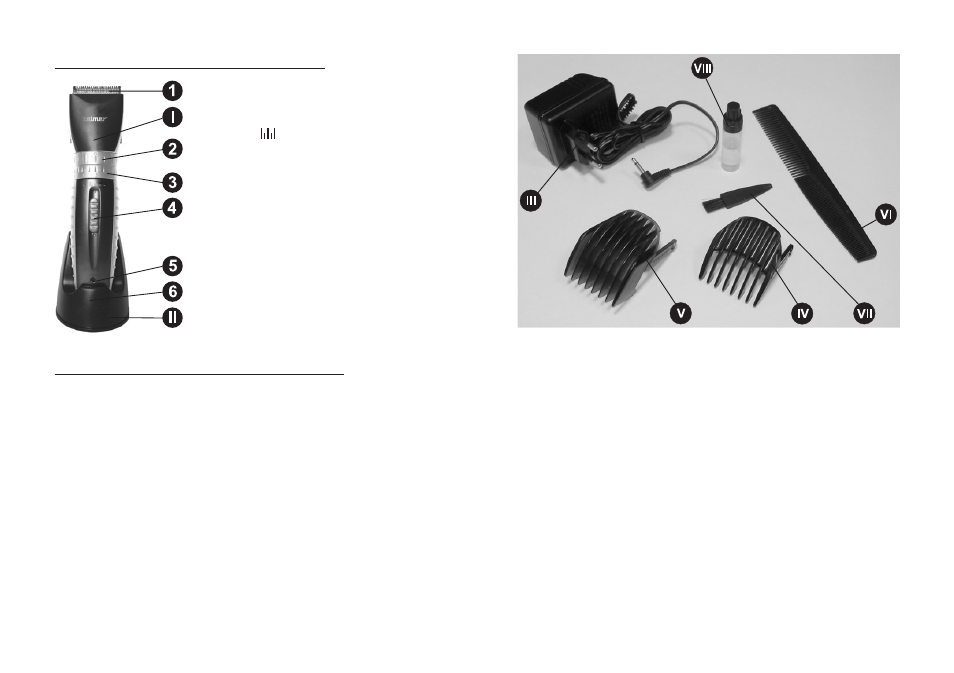

Outline and parts of the hair clipper
I. Hair clipper
1. Cutting head
2. Hair thinning knob (0 position – OFF,
position – ON)
3. Cutting length adjustment knob (1–5)
4. On/OFF switch
5. Pilot light
6. Loading socket
II. Loading base
III. Power supply adaptor
IV. Small comb attachment (2 pieces)
V. Big comb attachment (2 pieces)
VI. Comb
VII. Cleaning brush
VIII. Clipper oil
Handling and operation of hair clipper
The hair clipper can be used both as a mains supplied or cordless device.
1. Operation with power supply adaptor
At first insert the adaptor plug into the device and then insert the adapter plug into the mains supply outlet (230 V). In mains supplied mode the device
is ready for use.
2. Loading accumulators and cordless operation
TIP: Load the device minimum 16h before first usage and when 2–3 next loadings.
In order to load the device move the ON/OFF switch
–
(4) to „0”position.
Place the device on the loading base
–
(II).
Connect the loading base
–
(II) to the adapter cord (III).
Insert the plug of the adapter
–
(III) into appropriate mains supply outlet (230 V). The loading process is indicated by red pilot light (5) glowing. When
fully loaded the hair clipper can operate approximately sixty minutes.
The hair clipper accumulator obtains optimum power after three cycles of loading and unloading. Ten hours is enough for next loading. In order to
–
provide long life of accumulators, they should be completely unloaded before loading.
