9 Connecting to a TV
Pr
e
p
ar
ati
o
n
GB
Pr
e
p
ar
ati
o
n
Note
For part names of the Analog Controller (DUALSHOCK ® 2), see "Using the Analog
Controller (DUALSHOCK ® 2)" ( page 17).
• Do not plug the AC power cord for the console into the electrical outlet
until you have made all other connections.
• Check that the TV is turned off.

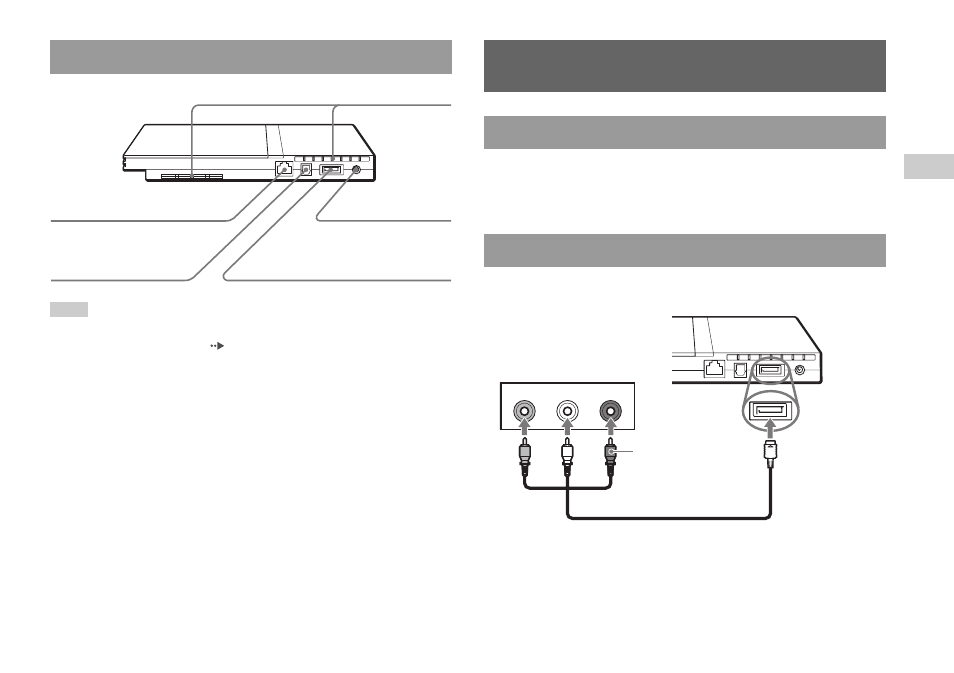

Connect the console to the TV as shown below.
PlayStation ® 2 console rear
Rear vent
! DC IN 8.5V
connector
AV MULTI OUT connector
DIGITAL OUT
(OPTICAL) connector
NETWORK connector
Connecting to a TV
Before connecting
Connecting to a TV using the supplied AV Cable
VIDEO L-AUDIO-R
Audio and video inputs of the TV
Do not use when
connecting to a
monaural TV.
To the AV MULTI
OUT connector
AV Cable (integrated audio/video)
Console rear
White Red Yellow
