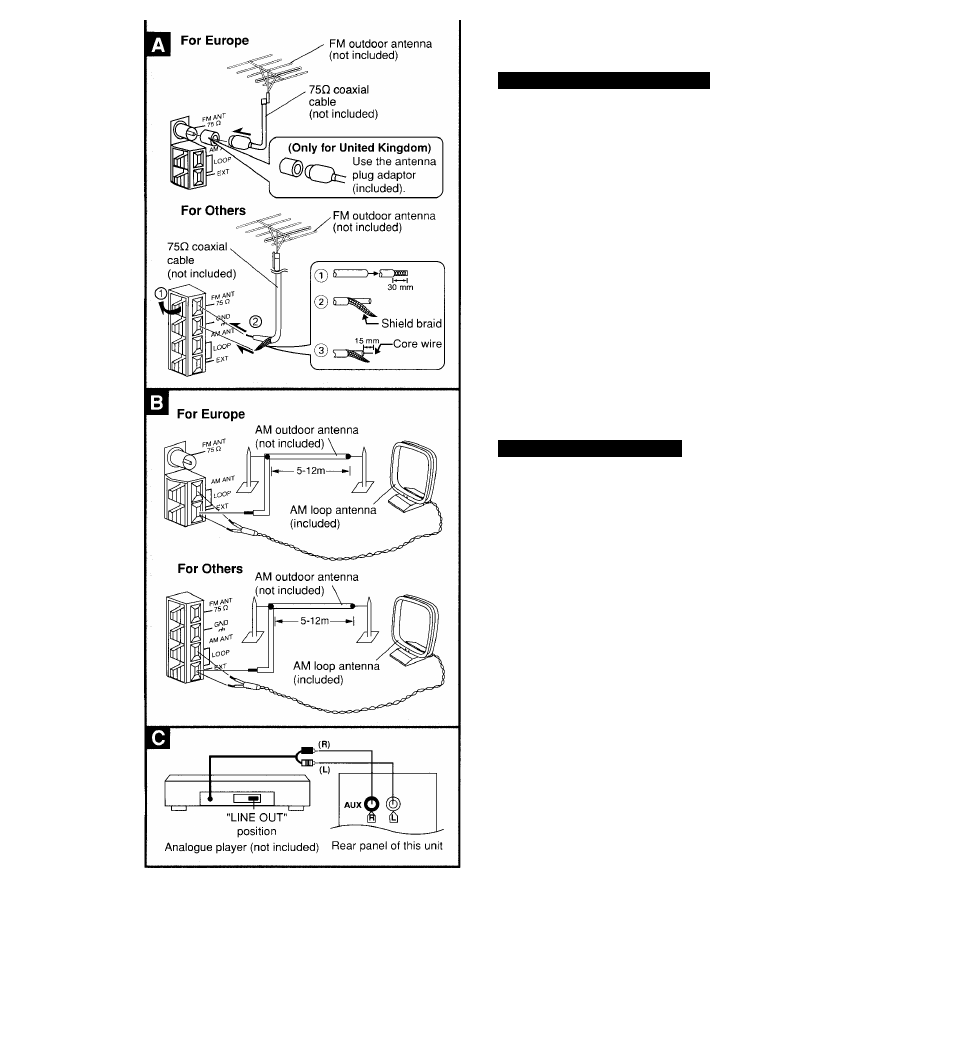

Connections

Optional antenna connections

You may need an outdoor antenna if you use this system in

a

mountainous

region

or

inside

a

reinforced-concrete

building, etc.

FM outdoor antenna

I

Disconnect

the

FM

indoor

antenna

if

an

FM

outdoor

antenna is installed.

An

outdoor

antenna

should

be installed

by a

qualified

technician only.

0)

2

£

0)

CQ

AM outdoor antenna

Connect the outdoor antenna without removing the AM loop

antenna. Run 5 to 12 m of vinyl-covered wire horizontally

along a window or other convenient location.

When the unit is not in use, disconnect the outdoor antenna

to

prevent

possible

damage

that

may

be

caused

by

lightning. Never use an outdoor antenna during an electrical

storm.

External unit connections

Make sure that the power supply for all components has

been turned off before making any connections.

For details, refer to the operating instructions of the unit

which is to be connected.

All peripheral components and cables sold separately.

Connecting analogue equipment

This example shows how to connect an analogue player

with a PHONO OUT/LINE OUT switch.

When units other than those described are to be connected,

please consult your audio dealer.

Only an analogue player with a built-in phono equalizer

can be connected.

Set the switch to the “LINE OUT” position at the back of

the analogue player.

RQT6686
