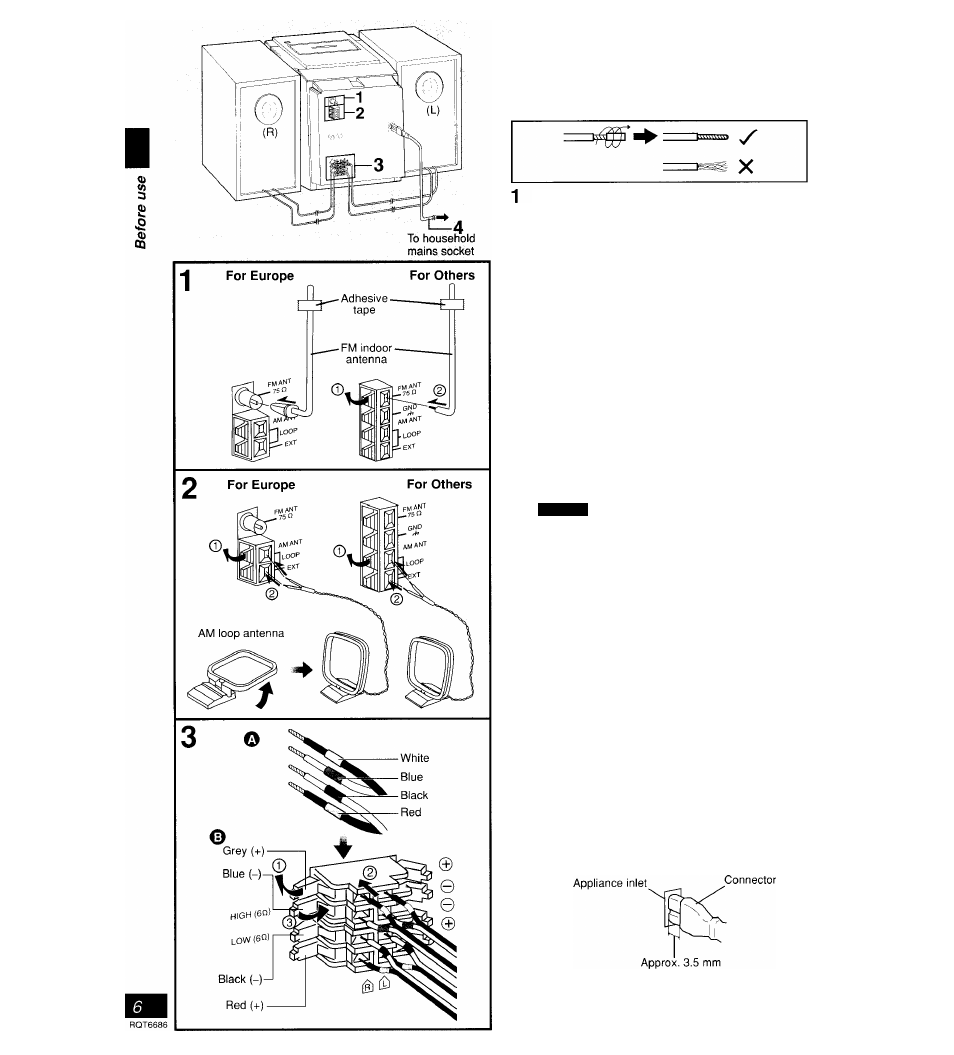

Connections
Plug the AC mains lead into a household mains socket
only after all other connections have been made.
To prepare the AM loop antenna wire and speaker cords,
twist the vinyl cover tip and pull off.
Connect the FM indoor antenna.
Tape the antenna to a wall or column, in a position
where radio signals are received with the least amount
of interference.
For the best reception:
An FM outdoor antenna is recommended. page 7)
Connect the AM loop antenna.
Stand the antenna up on its base. Keep loose antenna
cord away from other wires and cords.
Connect the speaker cables.
O Confirm the colors of the tags on the ends of the
cords.
© For White tags:
Connect cords to grey terminals.
For Blue, Black and Red tags:
Connect cords so tag colors match the terminal
colors.
Cords with white and blue tags are for high frequency.
Cords with red and black tags are for low frequency.
Incorrect connection can damage the unit.
Caution
Use only the supplied speakers.
The combination of the main unit and speakers provide
the best sound. Using other speakers can damage the
unit and sound quality will be negatively affected.
Caution
• Use the speakers only with the recommended
system.
Failure to do so may lead to damage to the
amplifier and/or the speakers, and may result
in the risk of fire. Consult a qualified service
person if damage has occurred or if you
experience a sudden change in performance.
• Do not attach these speakers to walls or
ceilings.
4
Connect the AC mains lead.
FOR THE UNITED KINGDOM ONLY
READ THE CAUTION FOR THE AC MAINS
LEAD ON PAGE 4 BEFORE CONNECTION.
Insertion of Connector
Even when the connector is perfectly inserted,
depending on the type of inlet used, the front part of the
connector may jut out as shown in the drawing.
However there Is no problem using the unit.
The included AC mains lead is for use with this unit
only. Do not use it with other equipment.
