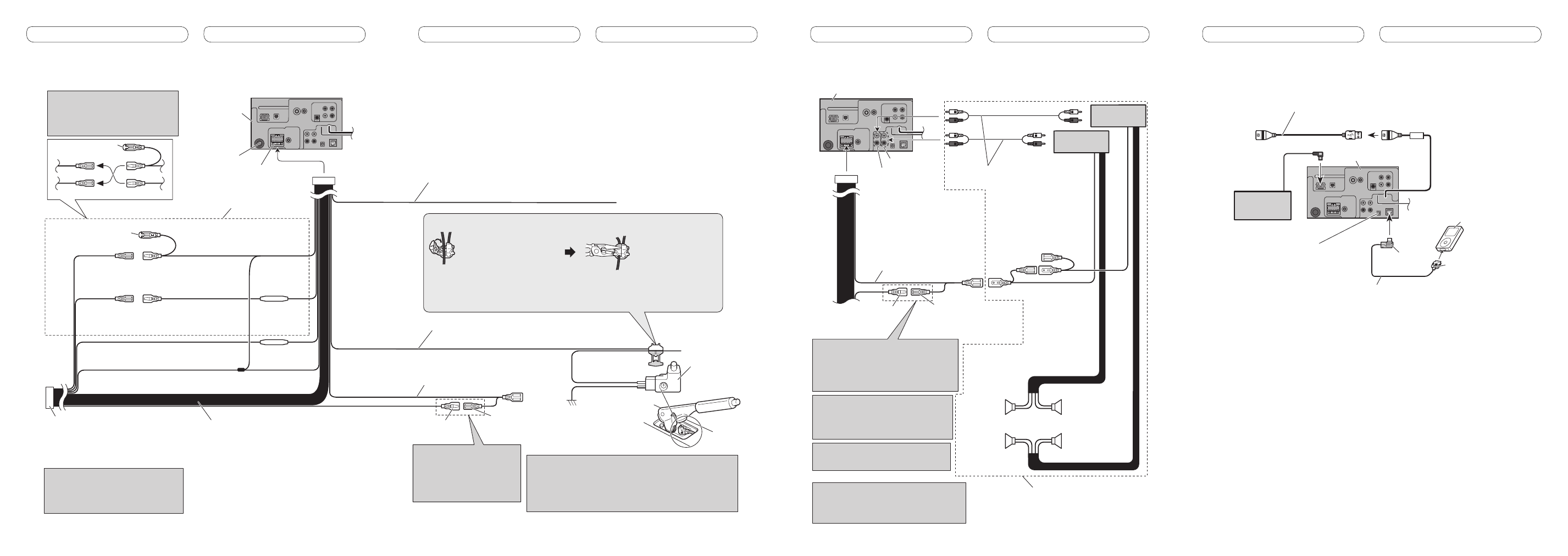

Connecting the units

Connecting the power cord

Notes:
· Change the initial setting of this unit (refer to the Operation Manual).

The subwoofer output of this unit is monaural.

· When using a subwoofer of 70 W (2

Ω) , be sure to connect with

Violet and Violet/black leads of this unit. Do not connect anything to
Green and Green/black leads.

Connection method

1. Clamp the lead.

2. Clamp firmly with

needle-nosed pliers.

Note:
· The position of the parking brake switch depends on the vehicle model. For details,

consult the vehicle Owner’s Manual or dealer.

Yellow/black
If you use equipment with Mute function, wire this lead to the
Audio Mute lead on that piece of equipment. If not, keep the
Audio Mute lead free of any connections.

Light green
Used to detect the ON/OFF status of the parking brake. This lead
must be connected to the power supply side of the parking brake
switch.

Blue/white
Connect to system control terminal of the power
amp (max. 300 mA 12 V DC).

Blue/white (7*)
Connect to auto-antenna relay control terminal
(max. 300 mA 12 V DC).

The pin position of the ISO
connector will differ depending on
the type of vehicle. Connect 6* and
7* when Pin 5 is an antenna control
type. In other types of vehicles,
never connect 6* and 7*.

Blue/white (6*)

Ground side

Power supply side

Parking brake
switch

Speaker leads
White: Front

left

White/black: Front

left

Gray: Front

right

Gray/black: Front

right

Green: Rear

left

 or subwoofer 

Green/black: Rear

left

 or subwoofer 

Violet: Rear

right

 or subwoofer 

Violet/black: Rear

right

 or subwoofer 

ISO connector
Note:
In some vehicles, the ISO connector may be
divided into two. In this case, be sure to connect
to both connectors.

When you connect the separately sold
multi-channel processor (e.g., DEQ-P6600) to
this unit, do not connect anything to the
speaker leads and system remote control
(blue/white).

Note:
Depending on the kind of vehicle, the
function of 3* and 5* may be different. In
this case, be sure to connect 2* to 5* and
4* to 3*.

1*

2*

4*

3*

5*

Cap (1*)
Do not remove cap if this
terminal is not in use.

Yellow (3*)
Back-up
(or accessory)

Yellow (2*)
Connect to the constant 12 V
supply terminal.

Connect leads of the same
color to each other.

Fuse (10 A)

Fuse resistor

Red (5*)
Accessory
(or back-up)

Red (4*)
Connect to terminal controlled by
ignition switch (12 V DC).

Black (chassis ground)
Connect to a clean, paint-free metal location.

Fuse resistor

Orange/white
Connect to lighting switch terminal.

This product

Antenna input

Connecting the units

Connecting the units

When connecting to separately sold power amp

Note:
· Change the initial setting of this unit

(refer to the Operation Manual).
The subwoofer output of this unit is monaural.

Blue/white
Connect to system control
terminal of the power amp
(max. 300 mA 12 V DC).

Blue/white (7*)

Connect to auto-antenna

relay control terminal

(max. 300 mA 12 V DC).

The pin position of the ISO connector will differ
depending on the type of vehicle. Connect 6*
and 7* when Pin 5 is an antenna control type.
In other types of vehicles, never connect 6* and
7*.

Blue/white (6*)

When you connect the separately sold
multi-channel processor (e.g., DEQ-P6600) to
this unit, do not connect anything to the
speaker leads and system remote control
(blue/white).

This product

Connect with RCA cables (sold
separately)

Rear speaker
or Subwoofer

Perform these connections when
using the optional amplifier.

System remote control

Front speaker

Front speaker

Left

Right

Front output

When you connect the multi-channel processor
to this unit, refer to multi-channel processor’s
installation manual for the connection method.

Rear speaker
or Subwoofer

Power amp
(sold separately)

Power amp
(sold separately)

Rear output or
subwoofer output

Connecting the units

Connecting the system

iPod with Dock
connector

Dock connector

Interface cable
(e.g., CD-I200) (sold separately)

2 m

Gray

This product

1.5 m

20 cm

USB cable
Connect to sparately sold
USB device.

Wired remote input
Hard-wired remote control
adaptor can be connected
(sold separately).

Multi-CD player
(sold separately)
