When connecting a rear view
camera

When this product is used with a rear view
camera, it is possible to automatically switch
from the video to rear view image when the
gearstick is moved to REVERSE (R).

Rear-

View mode also allows you to check what is
behind you while driving.

WARNING

USE INPUT ONLY FOR REVERSE OR MIRROR
IMAGE REAR VIEW CAMERA. OTHER USE MAY
RESULT IN INJURY OR DAMAGE.

CAUTION

! The screen image may appear reversed.
! The rear view camera function is to use this

product as an aid to keep an eye on trailers, or
backing into a tight parking spot. Do not use
this function for entertainment purposes.

! The object in rear view may appear closer or

more distant than in reality.

! Please note that the edges of the rear view

camera images may differ slightly according
to whether full screen images are displayed
when backing, and whether the images are
used for checking the rear when the vehicle is
moving forward.

CAUTION

Be sure to use only the supplied extension
lead. Use of another lead could cause fire,
smoke and/or damage this navigation sys-
tem.

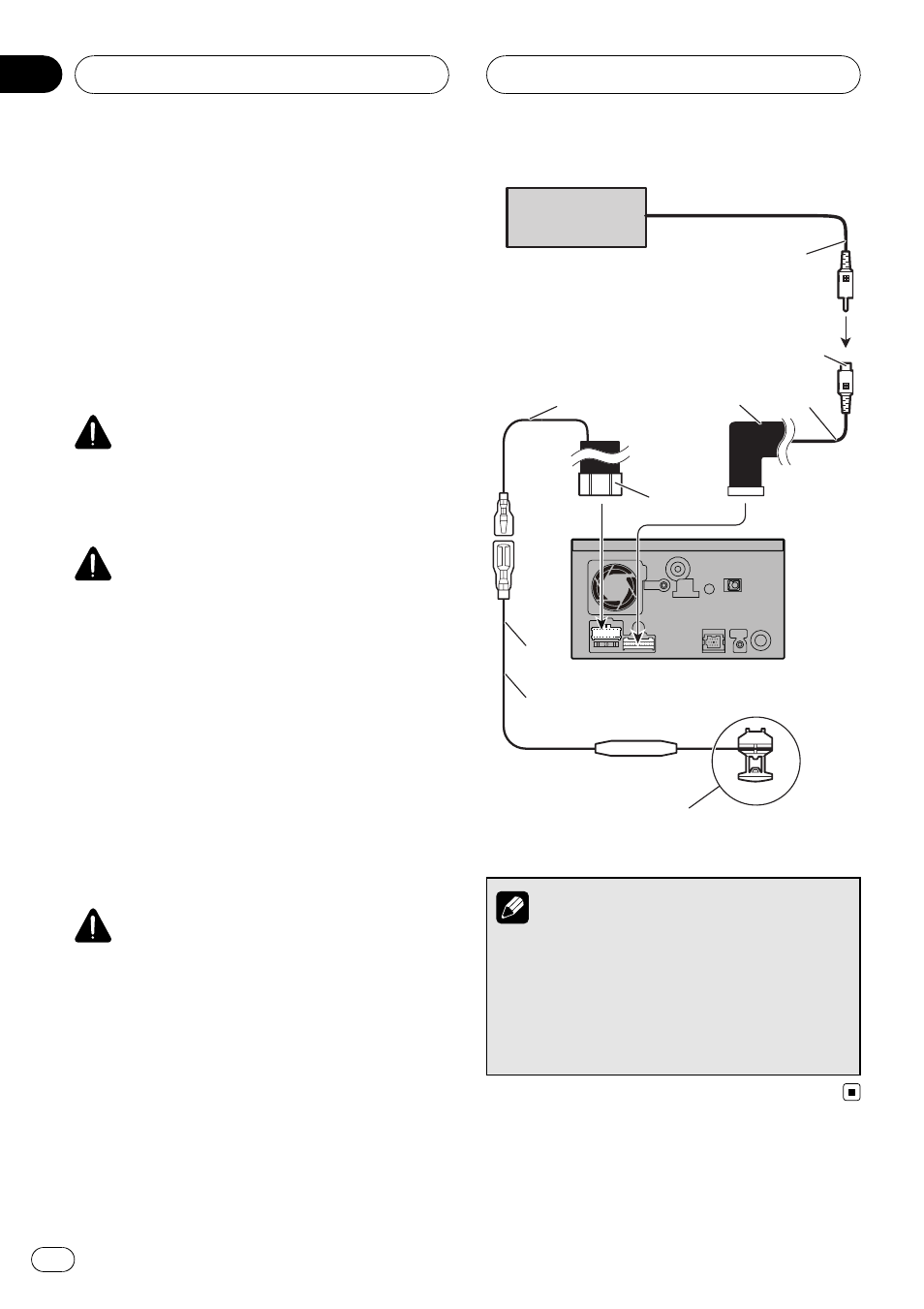

Extension lead (for reverse signal)

5 m

Violet/white

RCA connector

Power cord

The navigation unit

Fuse resistor

20 cm

RCA cable

To video output

Brown
(REAR VIEW CAMERA IN)

(e.g. ND-BC2)
(sold separately)

Rear view camera

For more details about the wiring, refer to Connecting
the power cord (2) on page 12

Notes

! It is necessary to set [Back Camera] in

[

System Settings] to [On] when connect-

ing the rear view camera. (For details, refer
to

“Operation Manual”.)

! Connect to the rear view camera. Do not

connect to any other equipment.

Connecting the System

Engb

16

Section

03
