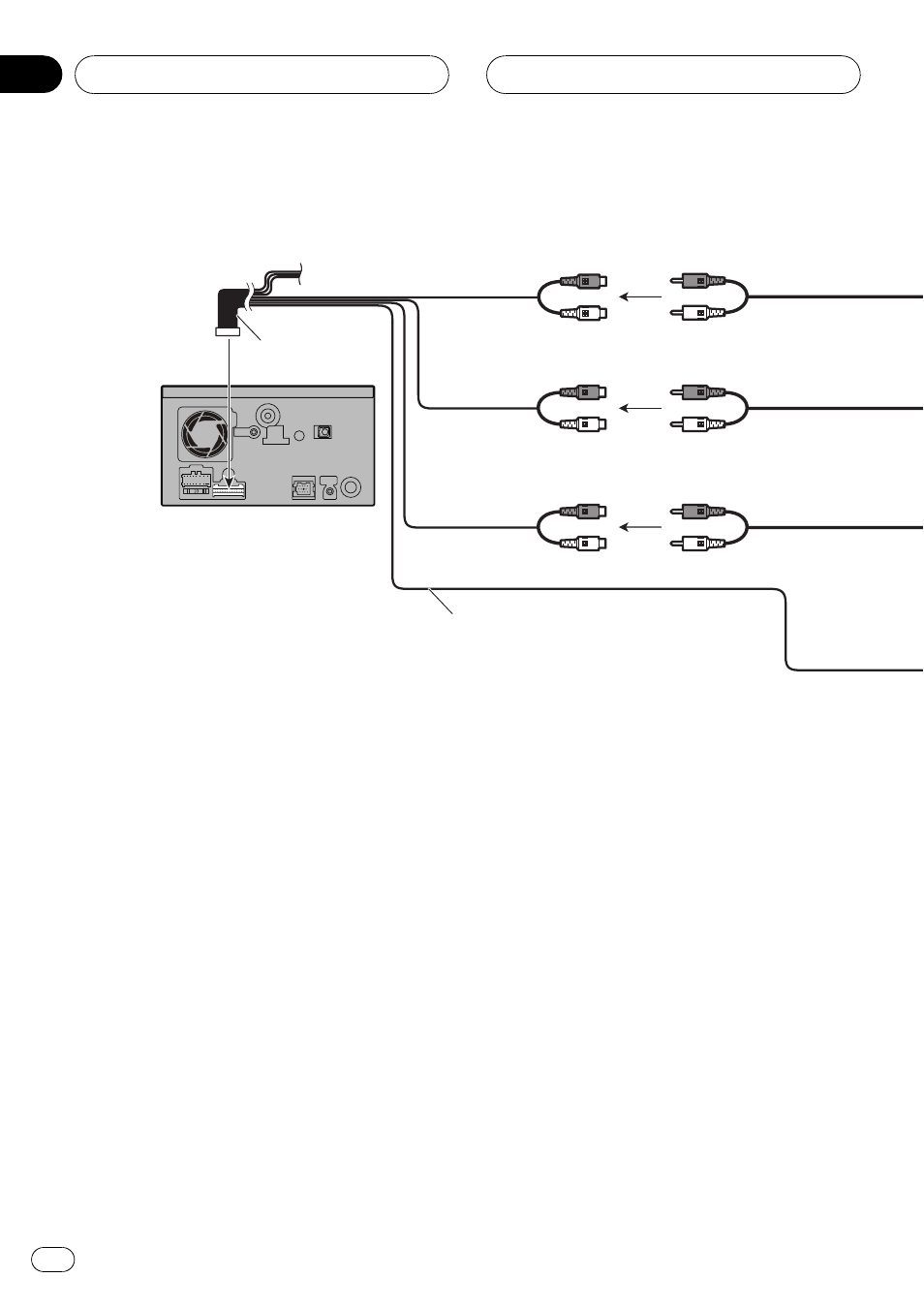

When connecting to separately sold power amp

The navigation unit

28 cm

Blue/white

30 cm

To system control terminal of the power amp
(max. 300 mA 12 V DC).

30 cm

30 cm

RCA connector

Subwoofer output
(SUBWOOFER OUTPUT)

Rear output
(REAR OUTPUT)

Front output
(FRONT OUTPUT)

Connecting the System

Engb

14
