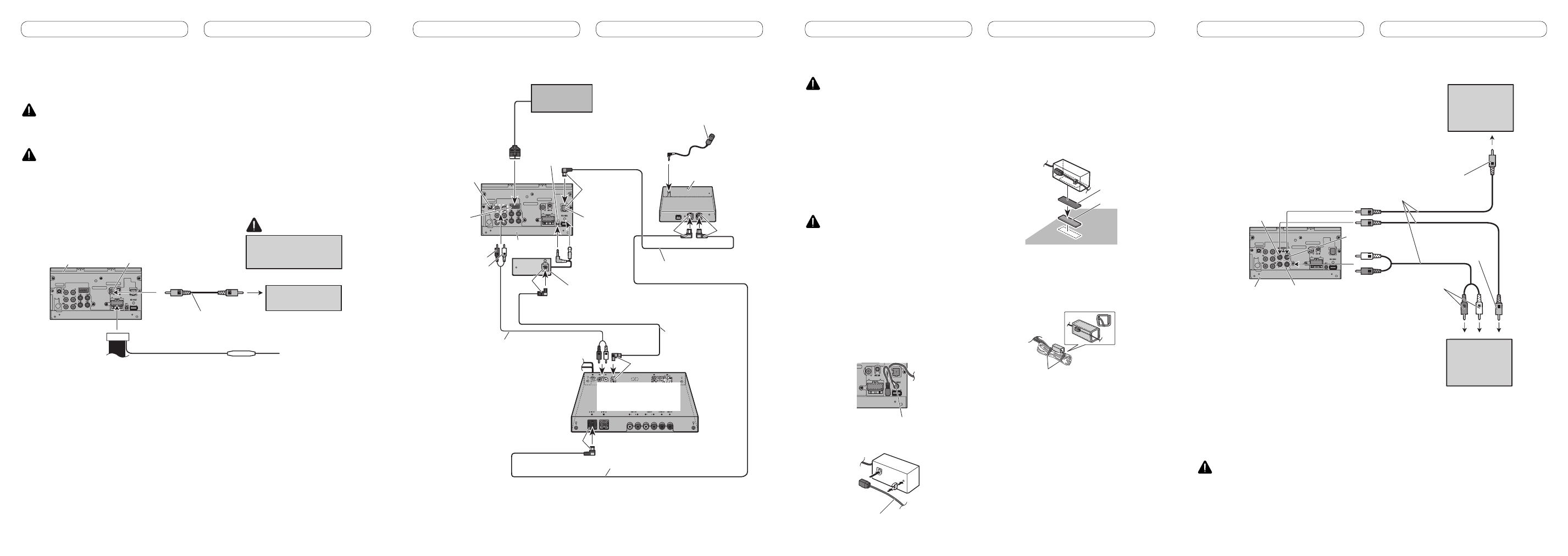

When connecting with a rear view camera

When this product is used with a rear view camera, it is possible to automatically switch from
the video to rear view image when the gear shift is moved to REVERSE (R).

WARNING

USE INPUT ONLY FOR REVERSE OR MIRROR IMAGE REAR VIEW CAMERA. OTHER USE MAY

RESULT IN INJURY OR DAMAGE.

CAUTION

• The screen image may appear reversed.

• The rear view camera function is to be used as an aid for backing into a tight parking spot. Do

not use this function for entertainment purposes.

• Objects in the rear view may appear closer or more distant than they actually are.

RCA cable
(sold separately)

To video output

Rear view camera

Rear view camera input
(REAR CAMERA IN)

This product

Violet/white
Of the two lead wires connected to the back lamp, connect the one
in which the voltage changes when the gear shift is in the
REVERSE (R) position. This connection enables the unit to
sense whether the car is moving forwards or backwards.

You must use a camera
which outputs mirror
reversed images.

CAUTION

Fuse resistor

• It is necessary to set Camera Polarity properly in System Menu when connecting the rear view

camera.

When connecting with a multi-channel processor

IP-BUS cable (supplied with
multi-channel processor)

RCA cable (supplied with
multi-channel processor)

Optical cable
(supplied with
multi-channel processor)

This product

Wired remote input
Hard-wired remote control
adaptor can be connected
(sold separately).

IP-BUS cable
(Supplied with Bluetooth adapter)

Black

Bluetooth adapter
(e.g. CD-BTB200)
(sold separately)

Microphone
for hands-free phoning
(supplied with Bluetooth adapter)

Blue

Multi-channel processor
(e.g., DEQ-P6600)
(sold separately)

Black

Optical cable connection box
(supplied with multi-channel processor)

To RL

To RR

Black

Blue

Optical output
(Black)

IP-BUS input

Blue

RGB input

Navigation Unit
(sold separately)

Please contact your dealer to inquire
about the connectable navigation unit.

Connecting and installing the optical cable connection box

WARNING

Avoid installing the optical cable connection

box in locations where the operation of safety

devices such as airbags is prevented by this

unit. Otherwise, there is a danger of a fatal

accident.

Avoid installing the optical cable connection

box in locations where the operation of the

brake may be prevented. Otherwise, it may

result in a traffic accident.

Fix the optical cable connection box securely

with the hook and loop fastener or lock tie. If

the unit is loose, it disturbs driving stability,

which may result in a traffic accident.

CAUTION

• Install this unit using only the parts supplied with

this unit. If other parts are used, this unit may be

damaged or could dismount itself, which leads to

an accident or other problems.

• Do not install this unit near the doors where

rainwater is likely to be spilled on the unit. Incursion

of water into the unit may cause smoke or fire.

Connecting the optical cable

1. Connect the optical cable and ground

lead to the main unit.

Connect the optical cable so that it does not

protrude from the main unit, as shown in the

illustration. Fasten the ground lead to the

protrusion on the back of the main unit.

2. Connect the optical cable to the optical

cable connection box.

Installing the optical cable
connection box

• When installing the optical cable

connection box with the hook and loop

fastener.

Install the optical cable connection box

using the hook and loop fastener in the

ample space of the console box.

• When installing the optical cable

connection box with the lock tie.

Wrap the optical cable and connection box with

the protection tape and fasten with the power

code using the lock tie.

Screw

Optical cable

Hook fastener

Loop fastener

Wrap with the protection tape

Fasten with the lock tie

When connecting the external video component and the display

External video
component (sold
separately)

Audio input
(L IN, R IN)

Display with RCA
input jacks (sold
separately)

To video input

To video output

To audio outputs

This product

RCA cables (sold separately)

Video input (V IN)

Rear monitor output
(V OUT)

• It is necessary to change AV Input in System Menu when connecting the external video

component.

When using a display connected to rear video output

This product’s rear video output is for connection of a display to enable passengers in the rear
seats to watch video.

WARNING

Never install the display in a location where it is visible to the driver while driving.
