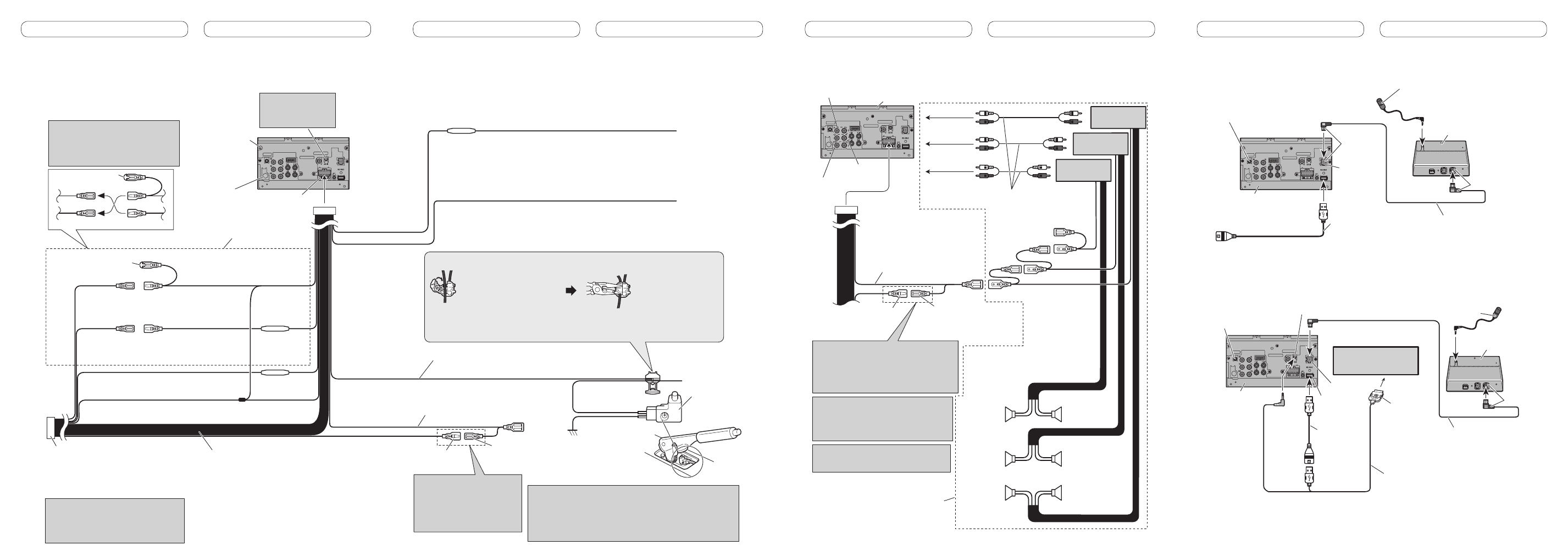

Connecting the power cord
Orange/white
Connect to lighting switch terminal.
Violet/white
Of the two lead wires connected to the back lamp, connect the one
in which the voltage changes when the gear shift is in the
REVERSE (R) position. This connection enables the unit to
sense whether the car is moving forwards or backwards.
Notes:
· Change the initial setting of this unit (refer to the Operation Manual).
The subwoofer output of this unit is monaural.
· When using a subwoofer of 70 W (2 Ω) , be sure to connect with
Violet and Violet/black leads of this unit. Do not connect anything to
Green and Green/black leads.
Connection method
1. Clamp the lead. 2. Clamp firmly with
needle-nosed pliers.
Note:
· The position of the parking brake switch depends on the vehicle model. For details,
consult the vehicle Owner’s Manual or dealer.
Yellow/black
If you use equipment with Mute function, wire this lead to the
Audio Mute lead on that piece of equipment. If not, keep the
Audio Mute lead free of any connections.
Light green
Used to detect the ON/OFF status of the parking brake. This lead
must be connected to the power supply side of the parking brake
switch.
Blue/white
Connect to system control terminal of the power
amp (max. 300 mA 12 V DC).
Blue/white (7*)
Connect to auto-antenna relay control terminal
(max. 300 mA 12 V DC).
The pin position of the ISO
connector will differ depending on
the type of vehicle. Connect 6* and
7* when Pin 5 is an antenna control
type. In other types of vehicles,
never connect 6* and 7*.
Blue/white (6*)
Ground side
Power supply side
Parking brake
switch
Speaker leads
White: Front
left
White/black: Front left
Gray: Front right
Gray/black: Front right
Green: Rear left or subwoofer
Green/black: Rear left or subwoofer
Violet: Rear right or subwoofer
Violet/black: Rear right or subwoofer
ISO connector
Note:
In some vehicles, the ISO connector may be
divided into two. In this case, be sure to connect
to both connectors.
When you connect the separately sold
multi-channel processor (e.g., DEQ-P6600) to
this unit, do not connect anything to the
speaker leads and system remote control
(blue/white).
Note:
Depending on the kind of vehicle, the
function of 3* and 5* may be different. In
this case, be sure to connect 2* to 5* and
4* to 3*.
1*
2*
4*
3*
5*
Cap (1*)
Do not remove cap if this
terminal is not in use.
Yellow (3*)
Back-up
(or accessory) Yellow (2*)
Connect to the constant 12 V
supply terminal.
Connect leads of the same
color to each other.
Fuse (10 A)
Fuse resistor
Red (5*)
Accessory
(or back-up) Red (4*)
Connect to terminal controlled by
ignition switch (12 V DC).
Black (chassis ground)
Connect to a clean, paint-free metal location.
This product
AUX jack (3.5 ø)
Antenna input
Fuse resistor
Fuse resistor
Use a mini plug cable
to connect with
auxiliary device.
Connecting the units Connecting the units
When connecting to separately sold power amp












Blue/white
Connect to system control
terminal of the power amp
(max. 300 mA 12 V DC).
Blue/white (7*)
Connect to auto-antenna
relay control terminal
(max. 300 mA 12 V DC).
The pin position of the ISO connector will differ
depending on the type of vehicle. Connect 6*
and 7* when Pin 5 is an antenna control type.
In other types of vehicles, never connect 6* and
7*.
Blue/white (6*)
When you connect the separately sold
multi-channel processor (e.g., DEQ-P6600) to
this unit, do not connect anything to the
speaker leads and system remote control
(blue/white).
This product
Connect with RCA cables
(sold separately)
Rear speaker
Perform these connections when
using the optional amplifier.
System remote control
Front speaker Front speaker
Left Right
Front output
When you connect the multi-channel processor
to this unit, refer to multi-channel processor’s
installation manual for the connection method.
Rear speaker
Power amp
(sold separately)
Power amp
(sold separately)
Power amp
(sold separately)
Subwoofer Subwoofer
Rear output
Subwoofer output
To front output
To rear output
To subwoofer
output
When connecting with supplied USB cable
This product
1.5 m
USB cable
Connect to sparately sold
USB device.
Wired remote input
Hard-wired remote control
adaptor can be connected
(sold separately).
IP-BUS cable
(Supplied with Bluetooth adapter)
Black
Bluetooth adapter
(e.g. CD-BTB200)
(sold separately)
Microphone
for hands-free phoning
(supplied with Bluetooth adapter)
Blue
1.5 m
IP-BUS input
When connecting with optional CD-IU200V cable
This product
Wired remote input
Hard-wired remote control
adaptor can be connected
(sold separately).
Dock connector
Interface cable
(CD-IU200V) (sold separately)
iPod with video capabilities
(sold separately)
IP-BUS cable
(Supplied with Bluetooth adapter)
Black
Bluetooth adapter
(e.g. CD-BTB200)
(sold separately)
Microphone
for hands-free phoning
(supplied with Bluetooth adapter)
1.5 m
IP-BUS input
USB input
AUX input (AUX IN)
1.5 m USB cable
Connecting the units Connecting the units
