XIGMATEK ELYSIUM - Инструкция

Accessory List | Accessoires Liste | Tillbehörslista | Lista de accesorios
付属品一覧 | Список аксессуаров | ଩Ӈ఼൐ | Accessoires
Installation Guide | Installationsanweisungen | Installationsguide | Manual de instalación
取り付けガイド | Инструкция по установке | Ԋ၆؏᡽ | Guide d’installation
1-1 1-2
1-3 1-4

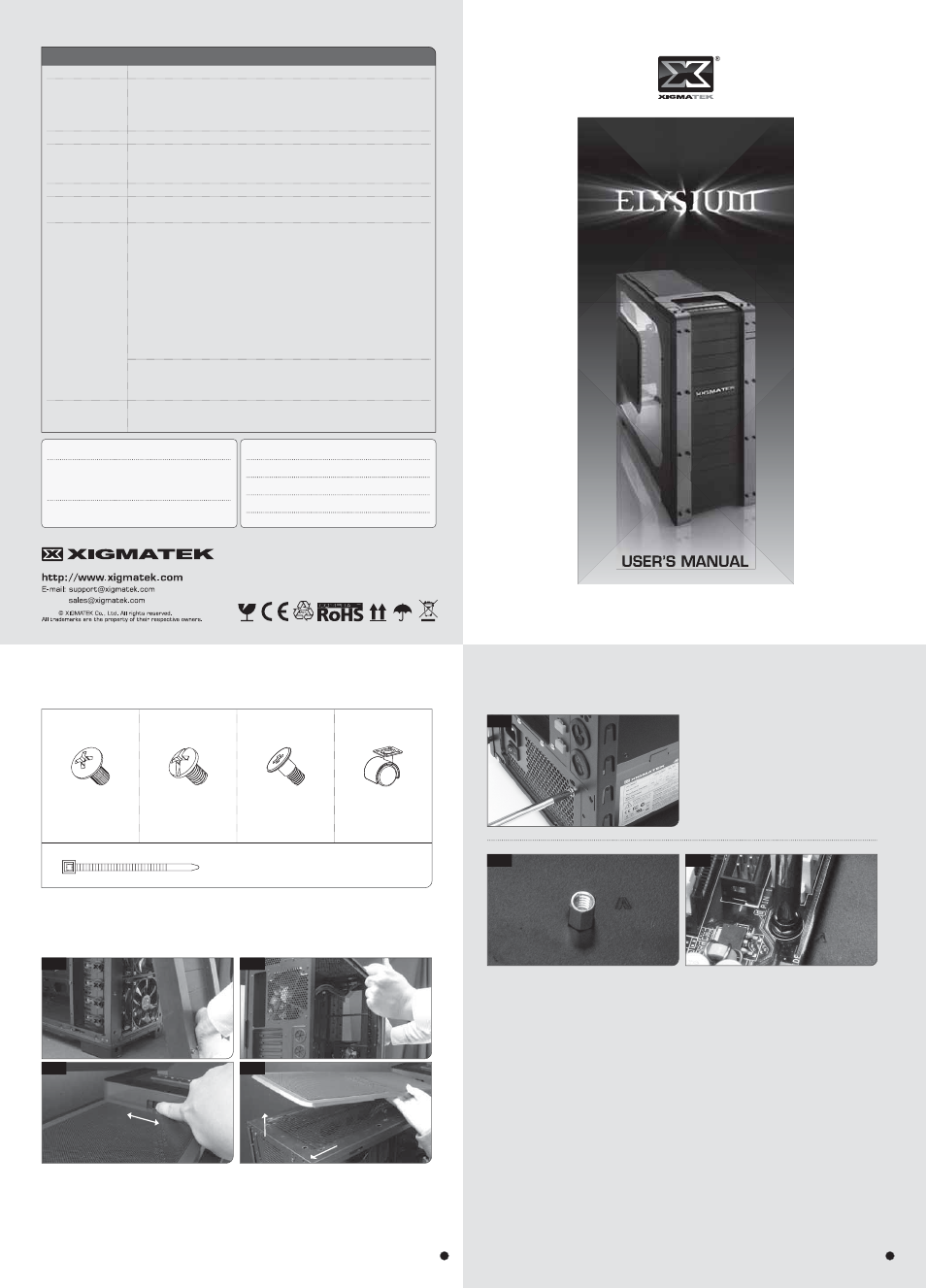

USER’S MANUAL
ELYSIUM - THE ONE AND ONLY
www.xigmatek.com
XIGMATEK SUPER TOWER CHASSIS
Specification
Product Name
Drive Bay
Dimensions
Expansion Slot
Motherboard Support
Power Supply
I/O Panel
Cooling System
ELYSIUM
Dual standard P/S2 ATX/EPS power supply units
1. Intake airflow hole with dust filter (Bottom space only).
2. Available for face upward and downward installation.
3. Within anti-vibration rubber (Bottom space only).
230(W) x 618(H) x 663(D) mm (9.06*24.33*26.10 inches)
5.25” External x 12 with both side tool-free holders.
(Including two 4 in 3 3.5” HDD cage.)
3.5” Internal HDD x 8 by HDD cages.
10 slots.
Extended-ATX, SSI CEB/EEB, XL-ATX, ATX, Micro ATX
(with CPU cooler black plant installation window)
Air-cooling
Front Fan: Pre-installed 120mm white LED with black blades x 2
(On the 4 in 3 HDD cage.)
Rear Fan: Pre-installed 140mm white LED with black blades x 1
(120mm fan is available)
Side Fan: Pre-installed 200mm white LED with black blades x 1
CPU Fan: 80/120mm fan x 1 available
Bottom Fan:If PSU was installed on bottom space: 120/140mm fan x2 or 200mm fan x 1
If PSU was installed on top space: 120/140mm fan x3 or 200mm fan x 2
Top Fan: If PSU was installed on bottom space: 120/140mm fan x3 or 200mm fan x 2
If PSU was installed on top space: 120/140mm fan x2 or 200mm fan x 1.
Water-cooling
Water pipe holes x 7 (with rubber cover)
Available for 360/420mm radiator
Top Panel: Power button, Reset button, USB3.0 x 2, USB2.0 x 2, e-SATA x 1,
Audio in/out x 1 (HD Audio), One 2.5”/3.5” HDD hot-swap docking.
2011
ɜ ɜ Open panels and covers to begin installation.
ɜ Öffnen Sie die Seitenpanele um mit der Installation zu beginnen.
ɜ Öppna höljet och panelerna.
ɜ Apertura de los laterales para comenzar la instalación.
ɜ ข䭙ઃ䬠䬽Ḱ஻䮜䮴䮺䮏䮘䮔䮲䬷䭼䭫䮐䮘䮔䮲䭡ข䭙ᄖ䬨䫻
ɜ Открытие панелей и крышек для начала установки.
ɜ ༟ుҽҠஎሏሃࡈϯবޕȄ
ɜ Ouvrir les façades latérales et du dessus avant de commencer l'in.
2-1 ɜ Power supply unit installation.
ɜ Powersupply Installation.
ɜ Installation av nätdel.
ɜ Instalación de la Fuente de alimentación.
ɜ 㔚Ḯ䮭䮒䮊䮏䬽ข䭙ઃ䬠䫻
ɜ Установка блока питания.
ɜ Չႅც࿚ڻᕕᐡȄ
ɜ Installation de l’unité d’alimentation.
3-1 3-2
ɜ Motherboard installation.
ɜ Motherboard Installation.
ɜ Installation av moderkort.
ɜ Instalación de la placa base.
ɜ 䮥䭽䯃䮣䯃䮐䬽ข䭙ઃ䬠䫻
ɜ Установка материнской платы.
ɜ ՉႅѹᑟޕȄ
ɜ Installation de la carte mère.
1 2
User Name:
Email:
Model Name:
Serial No:
Distributer:
Date of Purchase:
LOC
K
OPEN
OPEN
PU
LL
Wheel screw X 16 MB and PSU
screw X 20 3.5” HDD
screw X 32 Chassis wheel X 4
Cable tie
