Xigmatek pure black edition on classic chassis

Advertising

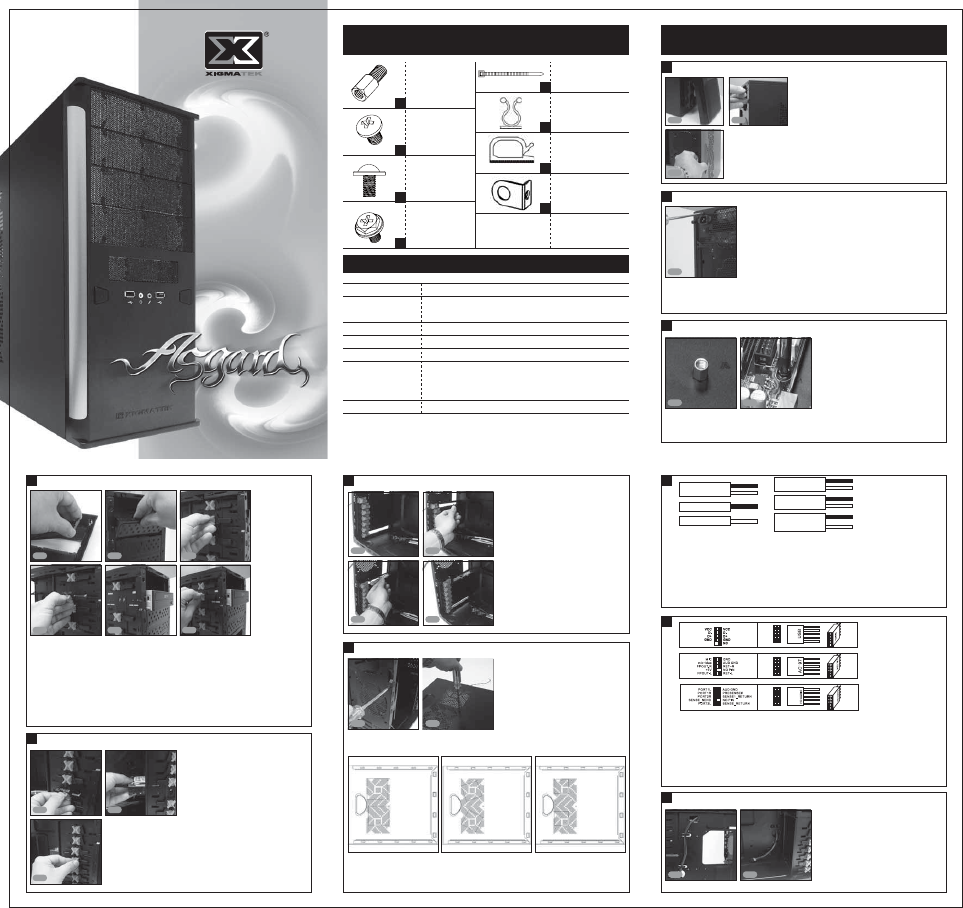

background image

H.D.D LED

+P LED

-P LED

POWER SW

RESET SW

SPEAKER

Accessory List / Accessoires Liste / Tillbehörslista / Lista de accesorios

付属品一覧 / Список аксессуаров଩Ӈ఼൐!0!Aksesuar Listesi

Specification

Installation Guide

1

COPPER STAND
OFF x 9

PAN WASHER
SCREWS x 18

HEXAGON
SCREWS x 8

HEXAGON
SCREWS x 4

CABLE TIE
(L100MM,BLACK) x 3

MOUNTING PURSE
LOCK x 2

WIRE SADDLE x 2

LOCK BOARD x 1

2

3

4

5

6

7

8

Dimensions

Drive Bay

Expansion Slot

Motherboard Support

Power Supply

Cooling System

I/O Panel

7 slots (Tool-free)

ATX (12” x 9.6”), Micro ATX (9.6” x 9.6”)

Standard P/2(ATX) or EPS

185( W ) x 475 ( D) x 408 ( H ) mm, 0.6mm thickness SGCC.

Front Panel: USB2.0 x 2, Audio out x 1, Microphone x 1

5.25” External x 4 (Tool-free)
3.5” External x 1 (Tool-free)
3.5” Internal x 5 (Tool-free)

Front Fan: 80/90/120mm*1 fan is available.
Rear Fan: Preinstalled 120mm black fan x 1
(80/90mm fan is available)
Side Fan: 80/90/120mm x 2 fans are available.

www.xigmatek.com

XIGMATEK
PURE BLACK
EDITION
ON CLASSIC
CHASSIS.

Screw-less Tooling For 5.25” Bay Installation.

Screw-less Tooling For Expansion Slot Installation.

Screw-less Tooling For 3.5” Bay Installation.

Preinstalled 120mm rear Fan.

Supports 4 Cooling Fans in total.

Back Window For Easy Cpu Cooler Back Plate.

Dust Filter Behind Front Panel For Intake Airflow.

1

■ Open front panel and side cover to begin

installation

■ Offenes Front Panel und Side Cover
■ Öppna front och sidoluckorna
■ Abra el panel frontal y el lateral

࠷䉍ב䈔䈱ᄷໂΓ䊐䊨䊮䊃䊌䊈䊦䈫䉰䉟䊄䊌䊈䊦
䈱࠷䉍؆䈚

■ Открыть лицевую и боковые панели

ؚၲছ૿ࣨፖೡ።

■ Yan kapağı açmak
■ Ouvrez le panneau avant (façade) et le

panneau latéral pour commencer l'installation.

9

■ USB, AC’97, and Azallia(HDA) connector installation
■ USB, AC’97, and Azallia(HDA) connector installation
■ Installation av USB, AC’97, och Azallia(HDA)
■ Instalación de las conexiones USB, AC97 y Azallia (HDA)
■ USB,

䉥䊷䊂䉞䉥䉮䊈䉪䉺࠷䉍ב䈔

■ Подключение внутренних разъёмов USB, AC’97, и Azallia(HDA)

ڜᇘUSB, ፖଃᄭᙁנԵ൷ᙰ

■ USB, AC’97, and Azallia(HDA) bağlantı montajı
■ Installation du connecteur USB, AC’97, et Azallia(HDA).

5

■ HDD installation
■ HDD Installation
■ Installation av hårddiskar
■ Instalación del disco duro

㪟㪛㪛䈱ข䉍ઃ䈔

■ Установка жёсткого диска

ڜᇘ࿏጗

■ Sabit Disk montajı
■ Installation HDD (disque dur).

2

■ Power supply unit installation
■ Powersupply Installation
■ Installation av nätdel
■ Instalación de la Fuente de alimentación

ሽᄭ䊡䊆䉾䊃䈱࠷䉍ב䈔

■ Установка блока питания

ڜᇘሽᄭࠎᚨᕴ

■ Güç Kaynağı birimi montajı
■ Installation de l’unité d’alimentation.

3

■ Motherboard installation
■ Motherboard Installation
■ Installation av moderkort
■ Instalación de la placa base

䊙䉱䊷䊗䊷䊄䈱࠷䉍ב䈔

■ Установка материнской платы

ڜᇘ׌ᖲࣨ

■ Anakart montajı
■ Installation de la carte mère.

10

■ Cable management
■ Kabel Management
■ Kabelorganisering
■ Colocación de los cables

䉬䊷䊑䊦㈩✢

■ Монтаж проводов

ᒵޗᖞ෻

■ Vida Listesi
■ Gestion de câble.

4

■ 5.25” / external 3.5” device installation
■ 5.25” / Externe 3.5” Device Installation
■ Installation av 5.25” / externa 3.5” enheter
■ Instalación en la bahía de 5,25” / 3.5”
■ 5.25” / 3.5”

䊂䊋䉟䉴䈱࠷䉍ב䈔

■ Установка устройств 5.25” / 3.5”

ڜᇘ5.25” / ؆൷ڤ3.5” ๻ໂ

■ 5.25” / Harici 3.5” Aygıt montajı
■ Installation des périphériques 5,25 / 3.5 pouces (externes).

6

■ Add-on card installation
■ Add-on card Installation
■ Installation av kort
■ Instalación de tarjetas adicionales

᜛ᒛ䉦䊷䊄䈱ข䉍ઃ䈔

■ Установка карт расширения

ڜᇘឩך׬

■ Harici Kart Montajı
■ Installation carte complémentaire.

8

■ I/O switch and chassis LED installation
■ I/O switch and chassis LED installation
■ Installation av I/O-panelen och LED-belysningen
■ Instalación del botón de encendido y los leds

㩷䉴䉟䉾䉼෸䈶㪣㪜㪛䈱ข䉍ઃ䈔

■ Подключение кнопок и индикаторов на передней панели корпуса

ڜᇘሽᄭၲᣂፖLEDᗉᇆᒵ

■ G/Ç düğmesi ve kasa Led montajı.
■ Installation du bouton I/O et LED du boitier.

7

■ System fan installation
■ System Lüfter Iinstallation
(■ Chassifläktar
■ Instalación de los ventiladores

ࠪࠬ࠹ࡓࡈࠔࡦߩ࠷ࠅבߌ

■ Установка вентиляторов

ڜᇘߓอଅ஛

■ Sistem Fanı montajı
■ Installation du système de ventilation.

Motherboard USB connector

Motherboard AC’97 connector

Motherboard Azalia(HDA) connector

case USB connector

case AC’97 connector

case Azalia(HDA) connector

120mm Fan Location

90mm Fan Location

80mm Fan Location

1.1

1.3

3.1

4.1

4.2

4.3

4.4

5.1

5.2

5.3

4.5

4.6

6.1

6.2

6.3

6.4

7.1

7.2

10.1

10.2

3.2

2

1.2

҈
