22 (E)

ENGLISH

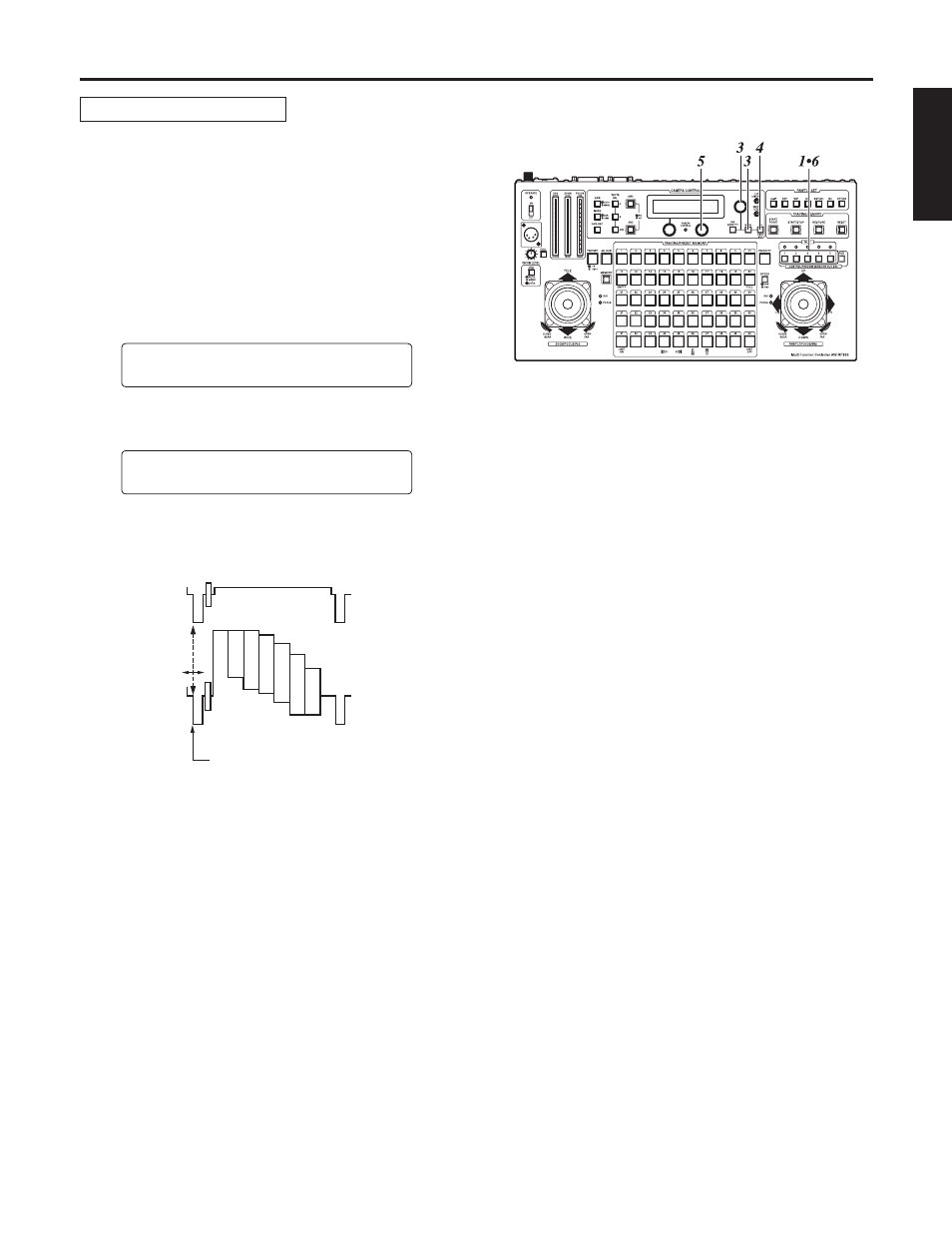

1. Select the pan/tilt head system using the CONTROL/

PREVIEW MONITOR OUT SEL button.

2. Connect the external synchronizing signal and the

video signal from the currently selected pan/tilt head
system (when using the cable compensation unit, the
corresponding Y/VIDEO OUT terminal) to the 2CH
oscilloscope.

3. Press the MENU button, turn the menu setting control

(main), and set it so that the G/L SETTING item appears
at the top of the LCD panel.

G/L SETTING

OK Key

4. Press the OK button.

The following item appears on the LCD panel.

H PHASE

0

5. Using the menu setting control (R), align the horizontal

phase of the video signal waveforms on the oscilloscope
and external sync signal waveforms.

6. Select the next pan/tilt head system using the

CONTROL/PREVIEW MONITOR OUT SEL button, and
continue adjusting the horizontal phase in each system
concerned.

Operation

Horizontal phase adjustment

External sync

signal

Video signal

Align the horizontal phase.
