21 (E)

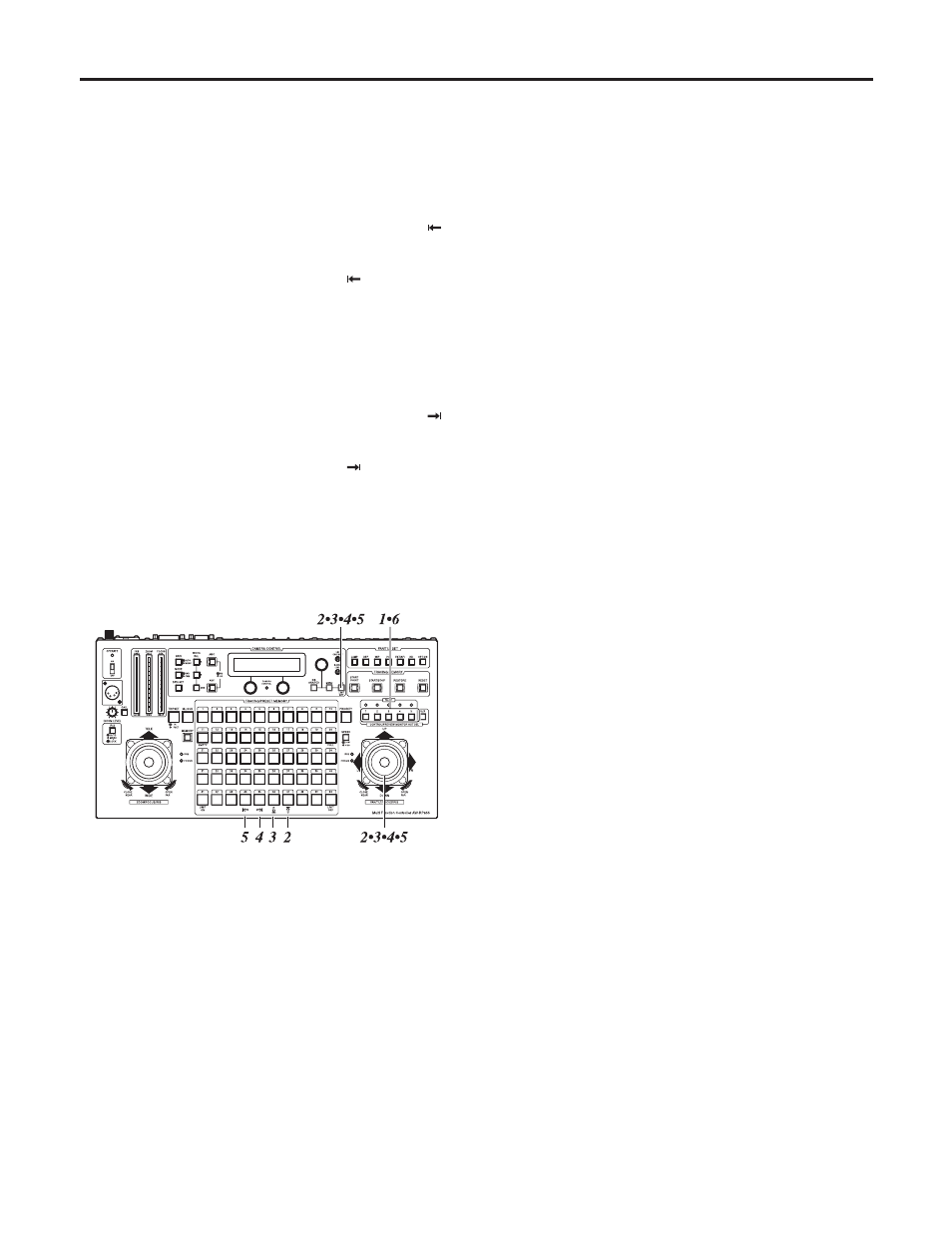

4. Set the left-most limit position in the travel range.
 Operate the PAN/TILT lever on the control panel to
rotate the camera to the position which is to serve as
the left-most limit position.
 While holding down the OK button, press button 44 .
 The setting is completed when the 41 [LIMIT ON]
button’s lamp comes on.
 To cancel the setting, press button 44 while pressing
the OK button again. When the setting is cancelled,
the 50 [LIMIT OFF] button’s lamp comes on.
5. Set the right-most limit position in the travel range.
 Operate the PAN/TILT lever on the control panel to
rotate the camera to the position which is to serve as
the right-most limit position.
 While holding down the OK button, press button 45 .
 The setting is completed when the 41 [LIMIT ON]
button’s lamp comes on.
 To cancel the setting, press button 45 while pressing
the OK button again. When the setting is cancelled, the
50 [LIMIT OFF] button’s lamp comes on.
6. Select the next pan/tilt head system using the
CONTROL/PREVIEW MONITOR OUT SEL button,
and continue setting the travel range (limiters) for each
system concerned.
Genlock adjustment
If a camera is to be synchronized with an external signal for
use, genlock adjustment must be performed for the camera
and other equipments.
Either the black burst or VBS (video, burst and sync) signal
is used for the external sync signal.
There is no need to perform the genlock adjustment if the
camera is not going to be synchronized with an external
signal.
For details on genlock adjustments, refer to the operating
instructions of the camera and cable compensation unit.
Operation
