17 (E)
AC adapter:
AW-PS300A
Genlock signal generator
System TALLY/INCOM
Set ID to [MAIN]
Set TERMINATION to [OFF]
Pan/tilt head/camera control signal
10BASE-T
Switcher, special
effects generator,
etc.
G/L signal
Video signal
Coaxial cable
(BBC No.PSF1/2M, BELDEN 8281)
Coaxial cable
(BBC No.PSF1/2M, BELDEN 8281)
Inter-communications
headset
Halogen lamp
Pan/tilt head
system
Colour monitor
(75 terminator)
AC adapter:
AW-PS505A
AC adapter:
AW-PS505A
Inter-communications
headset
Inter-communications
headset
AC adapter:
AW-PS505A
Multi-function controller
AW-RP655
Cable compensation unit
AW-RC400
Set ID to [2]
Set TERMINATION to [1]
Set ID to [1]
Set TERMINATION to [1]
Multi-function controller
AW-RP655
Multi-function controller
AW-RP655
AC adapter:
AW-PS505A
Video signal

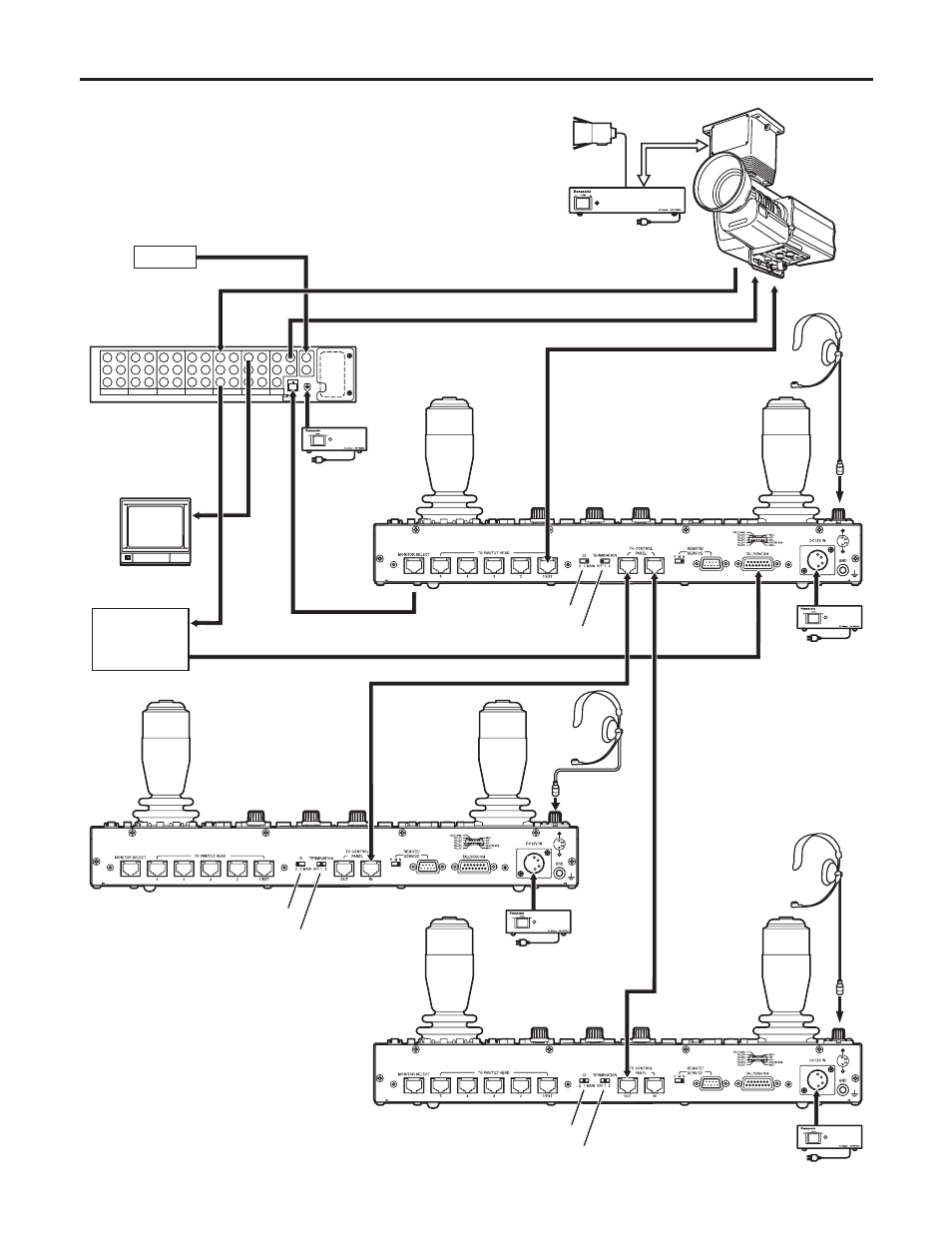

Connections
Example of system configuration
