Connections, 15 (e) – Инструкция по эксплуатации Panasonic AW-RP655

Страница 58

Advertising
background image

15 (E)

Connections

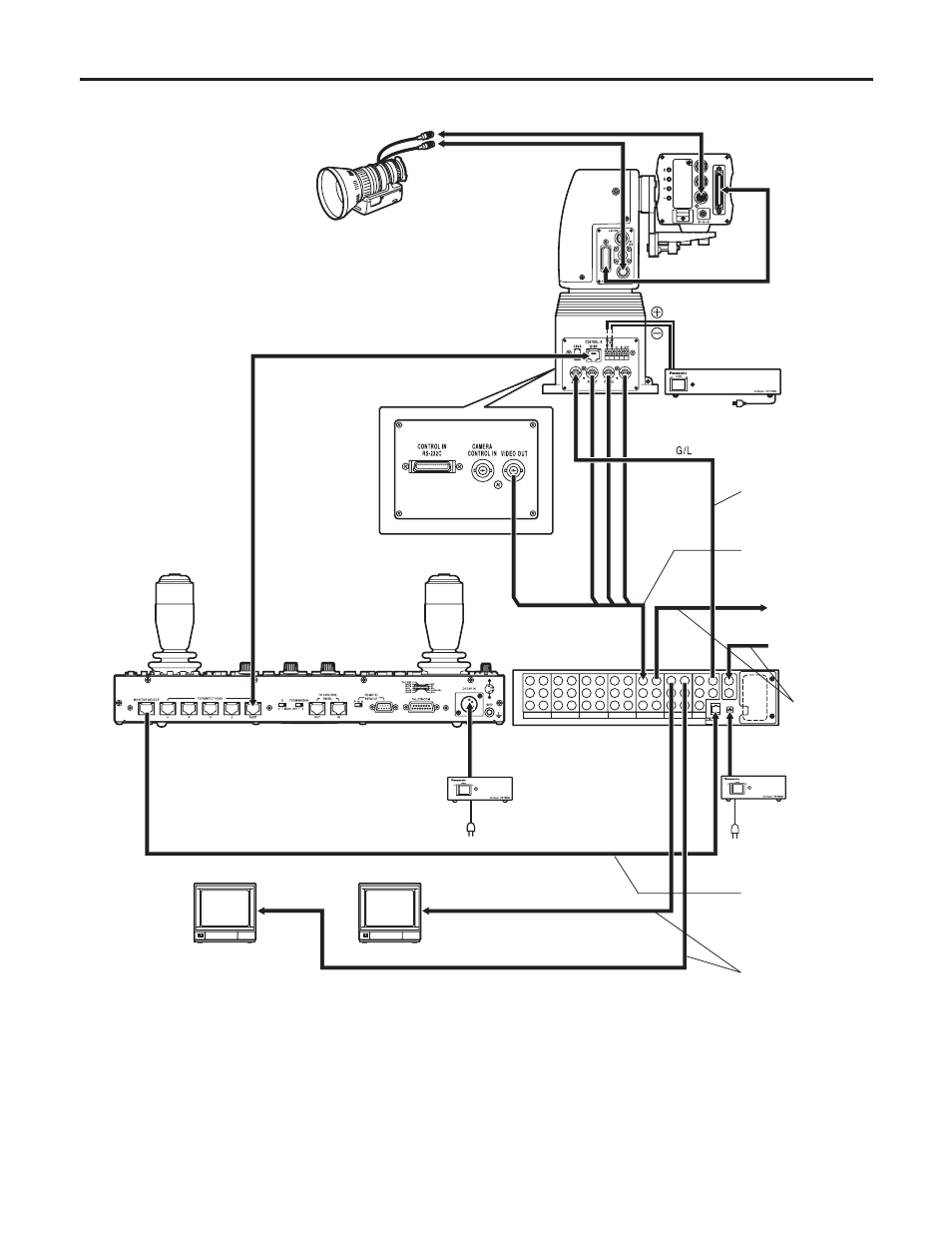

Zoom lens

Base connector front panel

AC adapter: AW-PS505A

AC adapter:

AW-PS505A

Multi-function controller

AW-RP655

Convertible camera

AC adapter: AW-PS300A

Monitor switching signals

Monitor signals 1

Monitor

Monitor

Monitor signals 2

Camera cable

(supplied)

10BASE-T (equivalent to UTP

category 5) straight cable

10BASE-T (equivalent to

UTP category 5) straight

cable

Coaxial cable

(BBC No.PSF1/2M,

BELDEN 8281)

Coaxial cable

(BBC No.PSF1/2M,

BELDEN 8281)

Coaxial cable

(BBC No.PSF1/2M,

BELDEN 8281)

Coaxial cable

(BBC No.PSF1/2M,

BELDEN 8281)

Video signal out

G/L signal in

Cable compensation unit

AW-RC400

Nominal cross section

1.25 mm

2

or more

VIDEO or Pb Pr Y
