Parts and their functions
 TERMINATION switch (Setting at shipment: 2)
Termination switch for the control signal communicating with the additional panel.

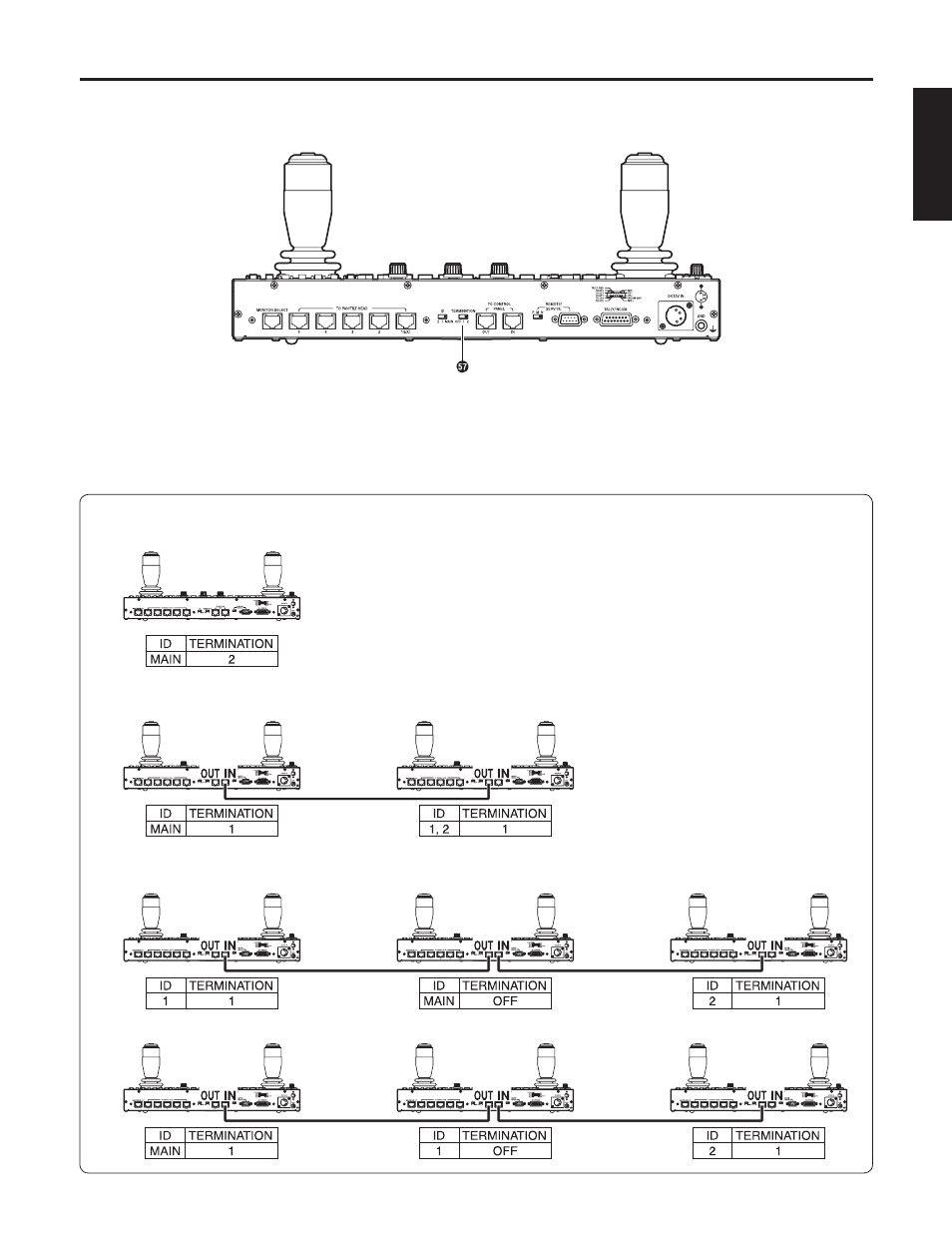

How to set the TERMINATION switch () and ID switch ()
(1) Set this switch to “2” when there are no additional panels connected to this unit.
(2) Set this switch and the additional panel TERMINATION switch to “1” when there is 1 additional panel connected to this
unit.
(3) Set the TERMINATION switches on the equipment on both sides of the connection to “1” when 2 additional panels are
connected to this unit and set the TERMINATION switches of devices in the middle of the connection to “OFF.”
or
