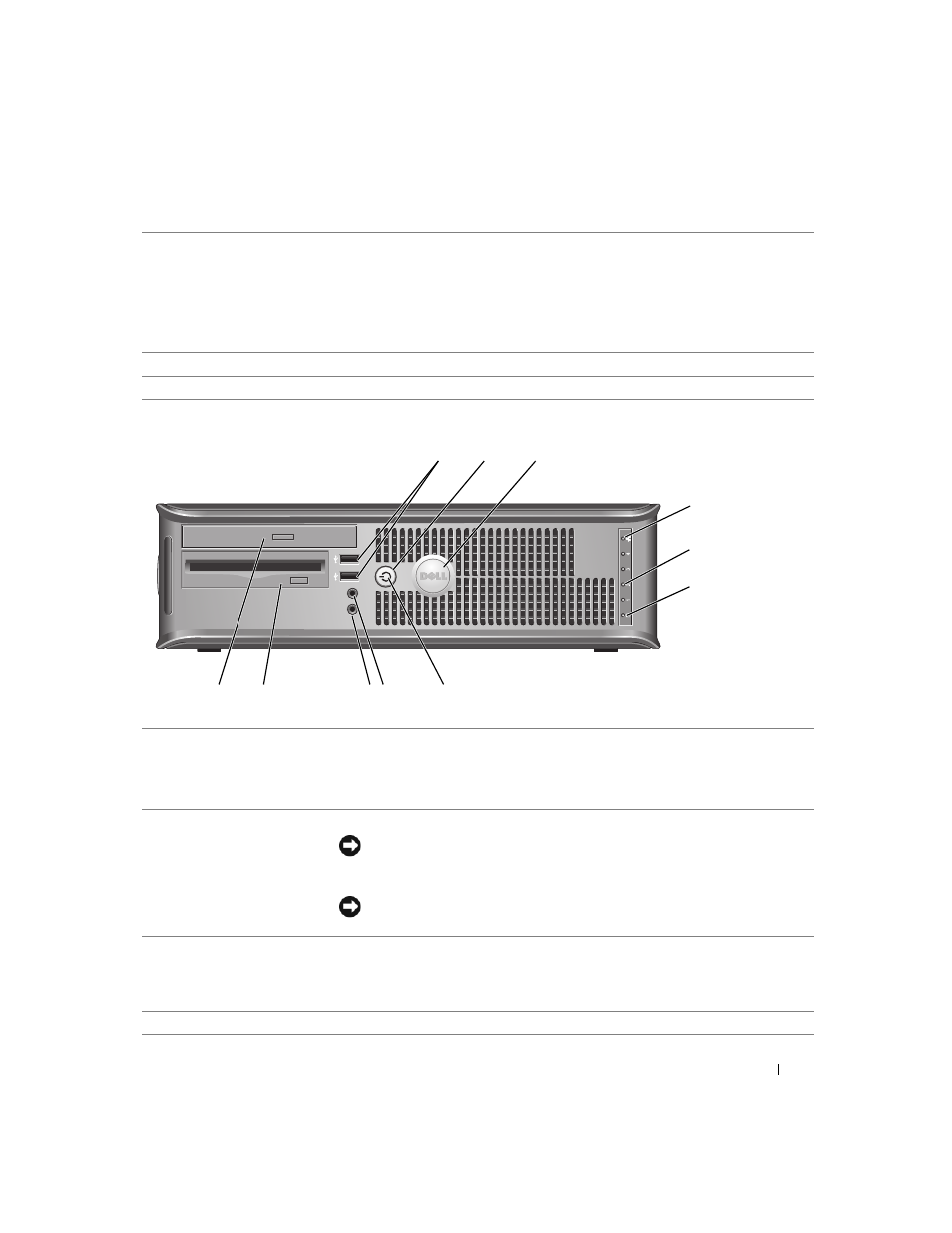

Small Form Factor Computer — Front View

4

voltage selection switch
(may not be available on
certain computers)

Your computer is equipped with a manual voltage-selection switch.

To help avoid damaging a computer with a manual voltage-selection switch, set
the switch for the voltage that most closely matches the AC power available in
your location.

Also, ensure that your monitor and attached devices are electrically rated to
operate with the AC power available in your location.

5

padlock ring

Insert a padlock to lock the computer cover.

6

cover release latch

Use this latch to open the computer cover.

8

9

3

5

1

4

6

11

10

2

7

1

USB 2.0 connectors (2)

Connect USB devices such as a mouse, keyboard, memory key, printer, joystick,
and computer speakers into either of the USB connectors.

It is recommended that you use the back USB connectors for devices that typically
remain connected, such as printers and keyboards.

2

power button

Press this button to turn on the computer.

NOTICE:

To avoid losing data, do not turn off the computer by pressing the

power button for 6 seconds or longer. Instead, perform an operating system
shutdown.

NOTICE:

If your operating system has ACPI enabled, when you press the power

button the computer will perform an operating system shutdown.

3

Dell badge

The badge can be rotated to match the orientation of your computer. To rotate
the badge, place fingers around the outside of the badge, press firmly, and turn the
badge. You can also rotate the badge using the slot provided near the bottom of
the badge.

4

LAN indicator light

This light indicates that a LAN (network) connection is established.
