12
VHF 300 Инструкция по установке

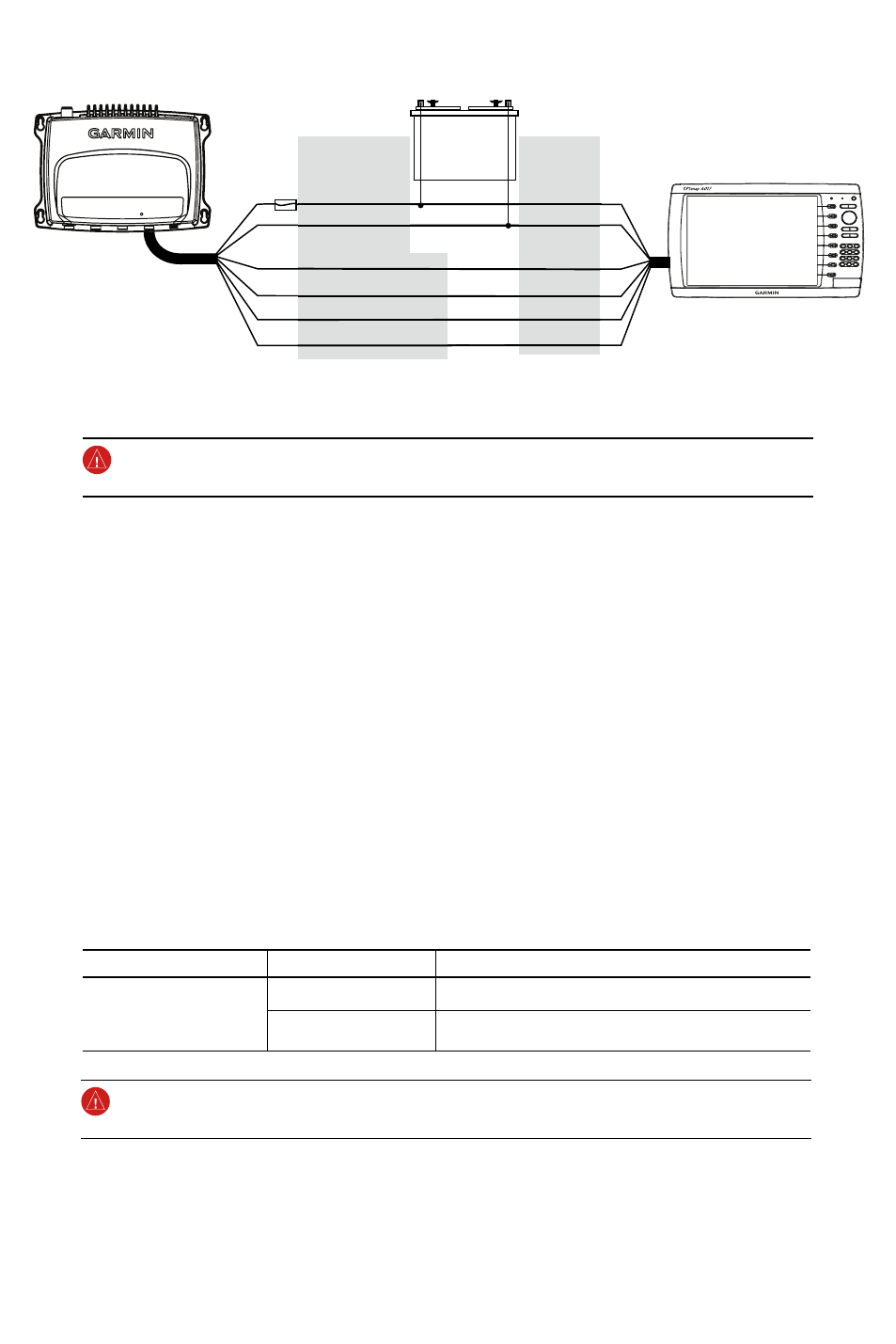

Рис.:Подключение радиостанции серии VHF 300 к устройству NMEA 0183
ВНИМАНИЕ: Закройте все соединения водонепроницаемой изоляционной лентой (например, рези-
новой вулканизированной лентой), чтобы внутрь радиостанции не просачивалась вода.
Подключение радиостанции серии VHF 300 к мегафону (опция)
1. Следуйте инструкциям по установке, предоставленным производителем мега-
фона (если он уже не установлен).
2. Обратитесь к производителю пассивного динамика, чтобы определить положи-
тельную и отрицательную клемму мегафона.
3. Используя таблицу кабеля питания VHF 300, определите положительный и от-
рицательный провод.
4. Подключите положительный и отрицательный провод кабеля GHS 10 к пассив-
ному динамику.
5. Для удлинительных проводов используйте провода с площадью сечения не ме-
нее 22 AWG.
Таблица кабеля питания GHS 10
Устройство
Цвет провода
Функция
Кабель питания
Желтый
Мегафон — положительный (+)
/данных VHF 300
Зеленый
Мегафон — отрицательный (-)
ВНИМАНИЕ: Закройте все соединения водонепроницаемой изоляционной лентой (например, рези-
новой вулканизированной лентой), чтобы внутрь радиостанции не просачивалась вода.
VHF 300 Series Installation Instructions
7
To create a basic NMEA 2000 network:
1. Connect two T-connectors (not included) together by their sides.
2. Connect a NMEA 2000 power cable (not included) to one of the T-connectors.
NOTICE: A NMEA 2000 power cable must be connected to a 12 Vdc power source through a switch. The NMEA 2000 network may drain your
battery if it is connected directly. Connect the cable to the ignition switch of the boat if possible, or through an appropriate additional switch.
3. Connect a NMEA 2000 drop cable (not included) to the other T-connector and to the NMEA 2000 port on the VHF 300 Series transceiver
box.
4. Add additional T-connectors for each device you add to the NMEA 2000 network, and connect each device to a T-connector with a drop
cable.
5. Connect terminators (not included) to each end of the combined T-connectors.
Connecting the VHF 300 Series to a NMEA 0183 Device
The following diagram illustrates the NMEA 0183 wiring used to connect your VHF 300 series radio to a GPS chartplotter.
Connect NMEA 0183 bare wires as indicated in the following illustration. Use 22 AWG wire for extended runs of wire, if needed.
+
-
>
>
>
>
>
>
>
>
NMEA 0183-
compatible
chartplotter
VHF 300
transceiver box
Battery
12 Vdc
White—Rx A (+)
Orange/White—Rx
B
(-)
Gray—Tx A (+)
Pink—Tx B (-)
Red—power (+)
Black—ground (-)
Tx A (+)
Tx
B
(-)
Rx A (+)
Rx B (-)
Power +
Ground -
Wire Color
and Function
Wire
Function
Fuse 10A
Connecting a VHF 300 Series Radio to a NMEA 0183 Device
NOTICE: Cover the connections with a waterproof, adhesive tape, such as rubber vulcanizing tape, to prevent water from seeping into the radio.
Connecting the VHF 300 Series Radio to a Hailer Horn (Optional)
1. Follow the mounting instructions provided by the manufacturer of your hailer horn if it is not already mounted.
2. Consult the manufacturer of your hailer horn to identify the positive and
negative wires or terminals.
3. Use the VHF 300 Series Hailer-Horn Wiring Assignment Table to identify the
positive and negative wires.
4. Wire the correct positive and negative wires from the VHF 300 power/data
cable to the passive speaker.
5. Use 22 AWG wire for extended runs of wire, if needed.
NOTICE: Cover the connections with a waterproof, adhesive tape, such as rubber vulcanizing tape, to prevent water from seeping into the radio.
Cable
Wire Color Function
VHF 300 power/
data cable
Yellow
Hailer-horn positive (+)
Green
Hailer-horn negative (-)
VHF 300 Series Hailer-Horn Wiring-Assignment Table
Cable
Wire Color Function
VHF 300 power/
data cable
Yellow
Hailer-horn positive (+)
Green
Hailer-horn negative (-)
VHF 300 Series Hailer-Horn Wiring-Assignment Table
Цвет и функция
провода
красный — питание (+)
черный — земля (-)
Функция
провода
питание (+)
земля (-)
TxA (+)
Tx
B
(-)
RxA (+)
RxB (-)
белый RxA (+)
оранжевый/белый - Rx
B
(-)
серый - TxA (+)
розовый - TxB (-)
блок приемопере-
датчика VHF 300
NMEA 0183-
совместимый
картплоттер
батарея
