17

En

CONNECTION

2

Eng

lish

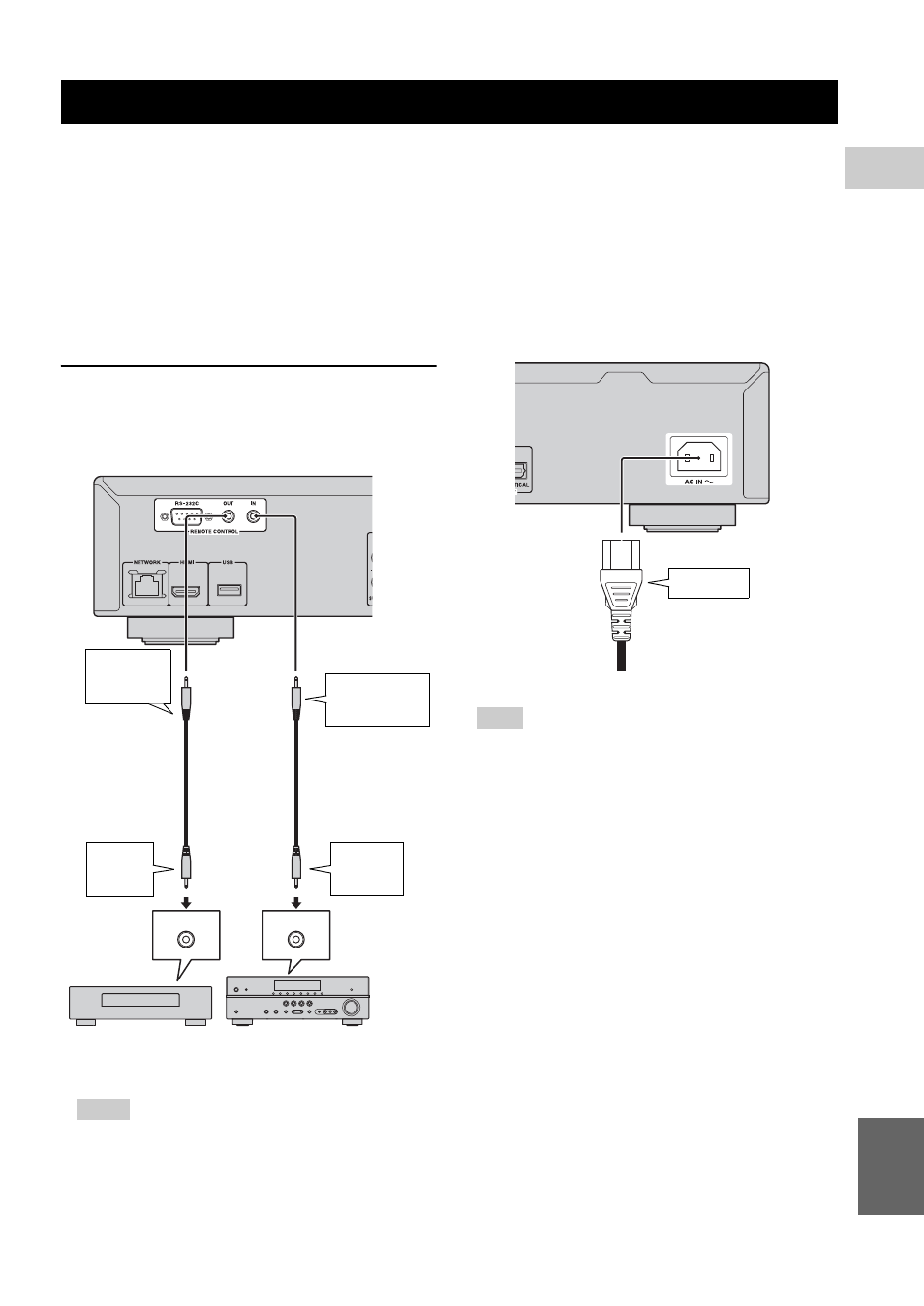

Connecting to the REMOTE

CONTROL jacks

– You can transmit and receive the remote control

signals by connecting to the REMOTE CONTROL
(OUT/IN) jacks.

– Firmly connect monaural 3.5 mm mini plug cables

(commercially available) to the REMOTE
CONTROL (OUT/IN) jacks.

– If your AV receiver is a Yamaha product and has the

capability to transmit SCENE control signals, you
can control the Player with the SCENE function.

Caution!

Do not connect the power cable of this
Player until all connections are completed.

– For details about the SCENE function, refer to the

owner’s manual supplied with your Yamaha AV
receiver.

– You can connect a Yamaha component (such as CD

player) supports the SCENE function to the
REMOTE CONTROL (OUT) jack of this Player.

– The RS-232C terminal is a control expansion

terminal for commercial use. Consult your dealer for
details.

Connecting the power cable

– After all connections are completed, plug the

supplied power cable into the AC IN on the rear of
the Player. Then plug into AC outlet.

– TO PREVENT RISK OF ELECTRIC SHOCK, DO

NOT TOUCH THE UN-INSULATED PARTS OF
ANY CABLES WHILE THE POWER CABLE IS
CONNECTED.

OTHER CONNECTIONS

Hints

REMOTE CONTROL IN

REMOTE CONTROL OUT

This Player

To REMOTE
CONTROL (IN)
jack

Monaural 3.5 mm
mini plug cable
(commercially
available)

To remote
control out
jack

Yamaha component

To remote
control in
jack

Monaural 3.5 mm

mini plug cable

(commercially

available)

Infrared signal receiver

or Yamaha component

(such as AV receiver)

To REMOTE
CONTROL
(OUT) jack

Note

To AC outlet

To AC IN
