12

En

CONNECTIONS

Composite video jack <A>

Connect

VIDEO OUT (VIDEO)

jack of this unit to the

video input jack of your AV receiver, and then to that of
your TV using the supplied video pin cable.

S-video jack <B>

S-video connections achieve a clearer picture than
composite video connections by transmitting video signals
on separate wires for luminance (Y) and chrominance (C).
Connect

VIDEO OUT (S VIDEO)

jack of this unit to

S-video input jack of your AV receiver, and then to that of
your TV using a commercially available S-video cable.

Component video jacks <C>

Component video connections achieve higher fidelity
color reproduction than S-video connections by
transmitting video signals on separate wires for luminance
(Y: green) and chrominance (P

B

: blue, P

R

: red). Connect

VIDEO OUT (COMPONENT)

jacks of this unit to the

component input jacks of your AV receiver, and then to
those of your TV using a commercially available
component cable. Observe the color of each jack when
you make connections.
If your receiver does not have component output jacks,
you can achieve a better video image by connecting the
component output jacks of this unit directly to the
component input jacks of your TV.

SCART terminal <D>
(U.K., Europe, and Russia models only)

If your TV has only a terminal for video input, you can
connect the TV directly to this unit.
Connect

AV

terminal of this unit to SCART input terminal

of your TV using a commercially available SCART cable.

• Ensure that the “TV” indication on SCART cable is connected

to the TV set and “DVD” indication on SCART cable is
connected to this unit.

• S-video signal is not output at

AV

terminal. See page 36 for

SCART video setting.

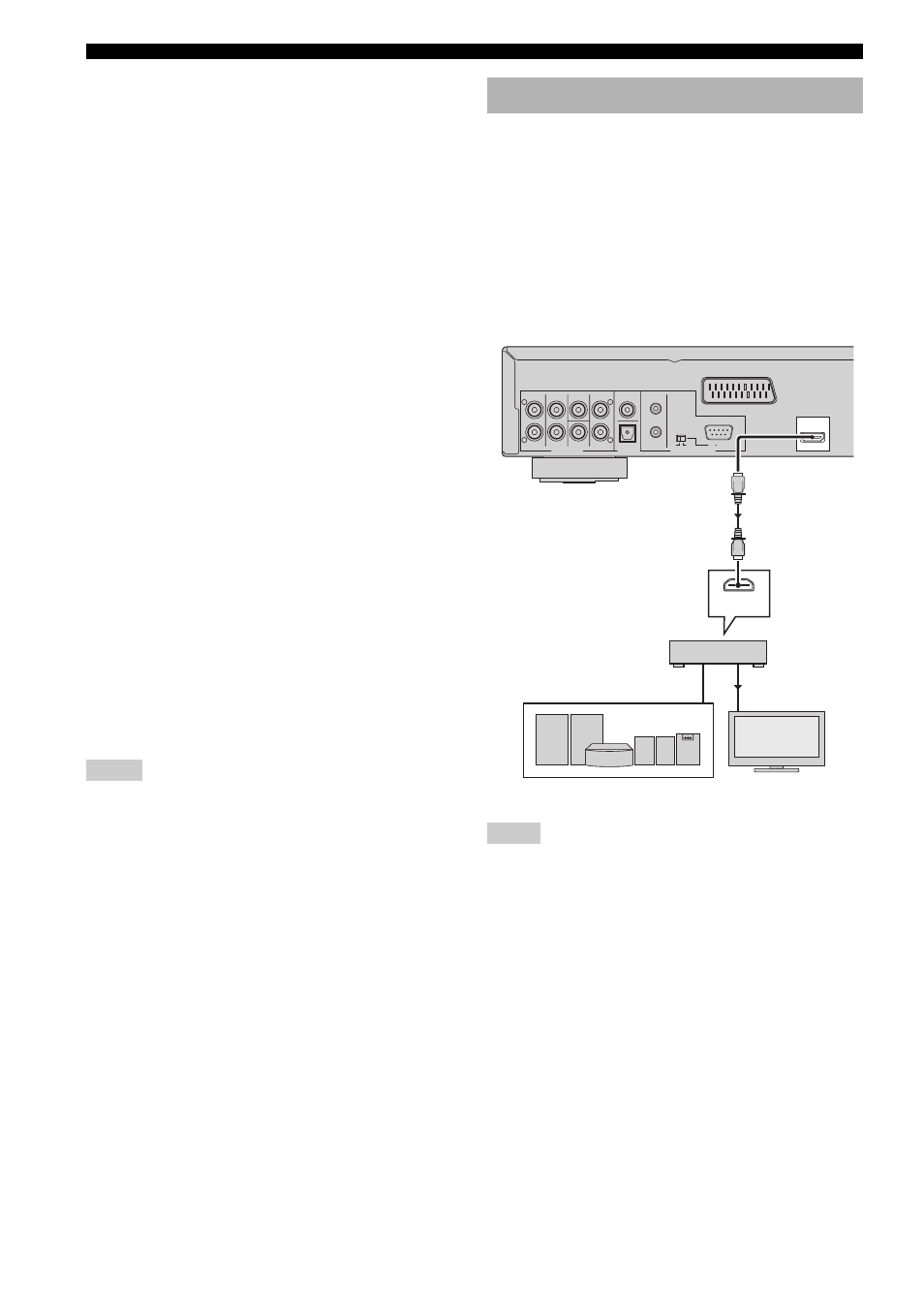

HDMI (High-Definition Multimedia Interface) provides
high quality digital audio and video on a single
connection.
Connect the

HDMI

jack of this unit to an HDMI input jack

of your AV receiver, and then to that of your TV using a
commercially available HDMI cable.
If your receiver does not have an HDMI input jack, you
can achieve a better video image by connecting the

HDMI

jack of this unit directly to the HDMI input jack of your
TV.

• You need to make appropriate audio connections if the

connected component does not input audio signals (see
page 10).

• This unit is not compatible with HDCP-incompatible HDMI or

DVI components.

• You need a commercially available HDMI/DVI conversion

cable when you connect this unit to other DVI components. In
this case, you need to use another audio connection to this
connection because the HDMI jack of this unit does not output
any audio signals.

• Do not disconnect or turn off the power of the HDMI/DVI

component connected to the HDMI jack of this unit while data
is being transferred. Doing so may disrupt playback or cause
noise.

y

When connecting an HDMI component, refer to the manual
supplied with your component.

Notes

HDMI connection

Notes

MIXED 2CH

REMOTE CONTROL

RS 232C

IN

OUT

ON

OFF

AUDIO OUT

FRONT

SUBWOOFER

CENTER

SURROUND

DIGITAL

COAXIAL

OPTICAL

L

R

L

R

AV

HDMI

HDMI

IN

This unit (U.K., Europe, and
Russia models)

AV receiver

Speakers

HDMI OUT

HDMI IN

TV
