CONNECTIONS
Eng
lish

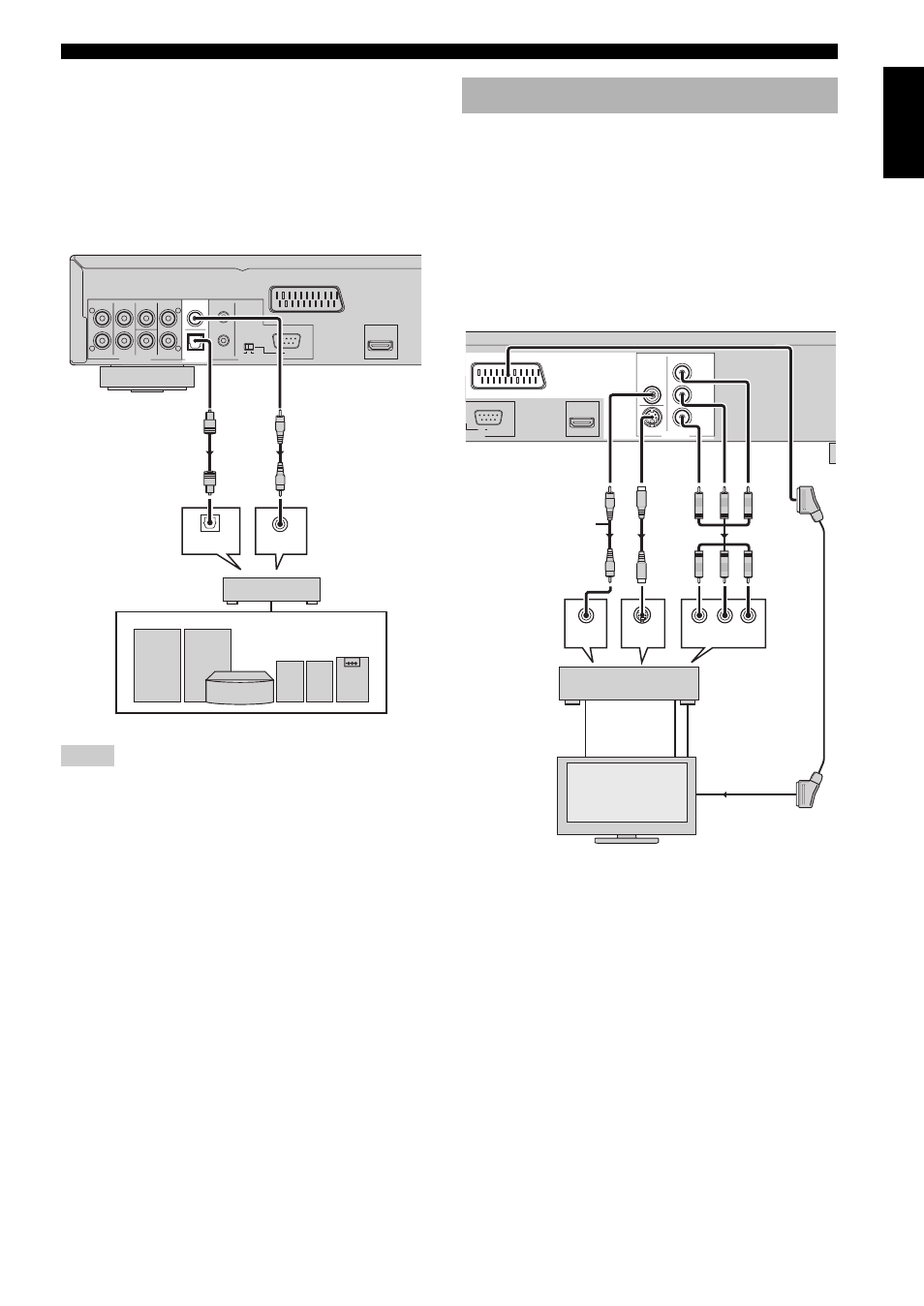

■ Digital connections
If you want to use the Dolby Digital, DTS, or MPEG
function on your AV receiver, connect
DIGITAL
(OPTICAL) <A> or DIGITAL (COAXIAL) <B> jack of
this unit to the corresponding input jacks of your AV
receiver using a commercially available digital optical or
digital coaxial cable.
• If you make a connection with <A> or <B>, set [Digital Out]
to [All] (see “Setting the digital output” on page 31).
• If the audio format of the digital output does not match the
capabilities of your receiver, the receiver produces a distorted
sound or no sound at all. Make sure to select the appropriate
audio format from the menu screen on the disc.
Pressing AUDIO on the remote control once or more may
change not only the audio languages but also the audio format.
• SA-CD audio signals are not output from DIGITAL
(COAXIAL/OPTICAL) jacks.
• If you want to enjoy Dolby Digital, DTS, and MPEG formats,
you must connect this unit to an AV receiver that supports
these formats.
This unit has SCART, composite video, S-video, and
component video output jacks. If your AV receiver has
video output jacks, connect your receiver and then your
TV so that you can use one TV for several different video
sources (LD, VCR, etc.) by simply switching the input
source selector on your receiver.
Use the one that corresponds to the input jacks on the
component to be connected.
Notes
MIXED 2CH
REMOTE CONTROL
RS 232C
IN
OUT ON OFF
AUDIO OUT
FRONT SUBWOOFER
CENTER
SURROUND
DIGITAL
COAXIAL
OPTICAL
L
R
L
R
AV
HDMI
COAXIAL
IN
OPTICAL
IN
<B> <A>
This unit (U.K.,
Europe, and
Russia models)
AV receiver
Speakers
Video connections
ONTROL VIDEO OUT
S VIDEO
P B / C B
Y
P R / C R
VIDEO
COMPONENT
AV
HDMI RS 232C
S-VIDEO
IN
VIDEO
IN
<B> <C> <D> <A>
VIDEO
OUT
VIDEO
IN
S VIDEO
OUT
COMPONENT
VIDEO OUT
COMPONENT
VIDEO IN S VIDEO
IN
P R /C R Y P B /C B
COMPONENT VIDEO IN
This unit (U.K., Europe, and Russia models)
Video
pin cable
(supplied)
AV
receiver
TV
