FUNCTIONAL OVERVIEW
Eng
lish
1
AUDIO OUT (6ch discrete) jacks
Connect to the 6ch input jacks of your AV receiver.
2
DIGITAL (COAXIAL) jack
Connect to the coaxial input jack of your AV receiver.
3
REMOTE CONTROL (IN/OUT) connectors
Use in custom installations to transmit remote control
signals via cable connections.
4
REMOTE CONTROL (RS-232C) terminal
(U.S.A., Canada, U.K., Europe, and Russia
models only)
Use as an expansion terminal for commercial use.
Consult your dealer for details.
5
AV terminal
(U.K., Europe, and Russia models only)
Connect to SCART input terminal of your TV.
6
VIDEO OUT (VIDEO) jack
Connect to the composite video input jack of your AV
receiver.
7
MAINS
Connect the supplied power cable.
8
AUDIO OUT (MIXED 2CH) jacks
Connect to the audio input jacks of your AV receiver or
stereo system.
9
DIGITAL (OPTICAL) jack
Connect to the optical input jack of your AV receiver.
0
HDMI jack
Connect to the HDMI input jack of your HDMI
component.
q
VIDEO OUT (S VIDEO) jack
Connect to the S-video input jack of your AV receiver.
w
VIDEO OUT (COMPONENT) jacks
Connect to the component input jacks of your AV
receiver.
■
Remote control connectors and RS-232C terminal
The
REMOTE CONTROL (IN/OUT)
connectors and the
REMOTE CONTROL (RS-232C)
terminal are used in
custom installation. Keep the RS-232C switch set to
OFF
and do not connect any cables to these connectors during
normal use.
Caution: Do not touch the inner pins of the jacks on the rear panel of this unit. Electrostatic discharge
may cause permanent damage to this unit.

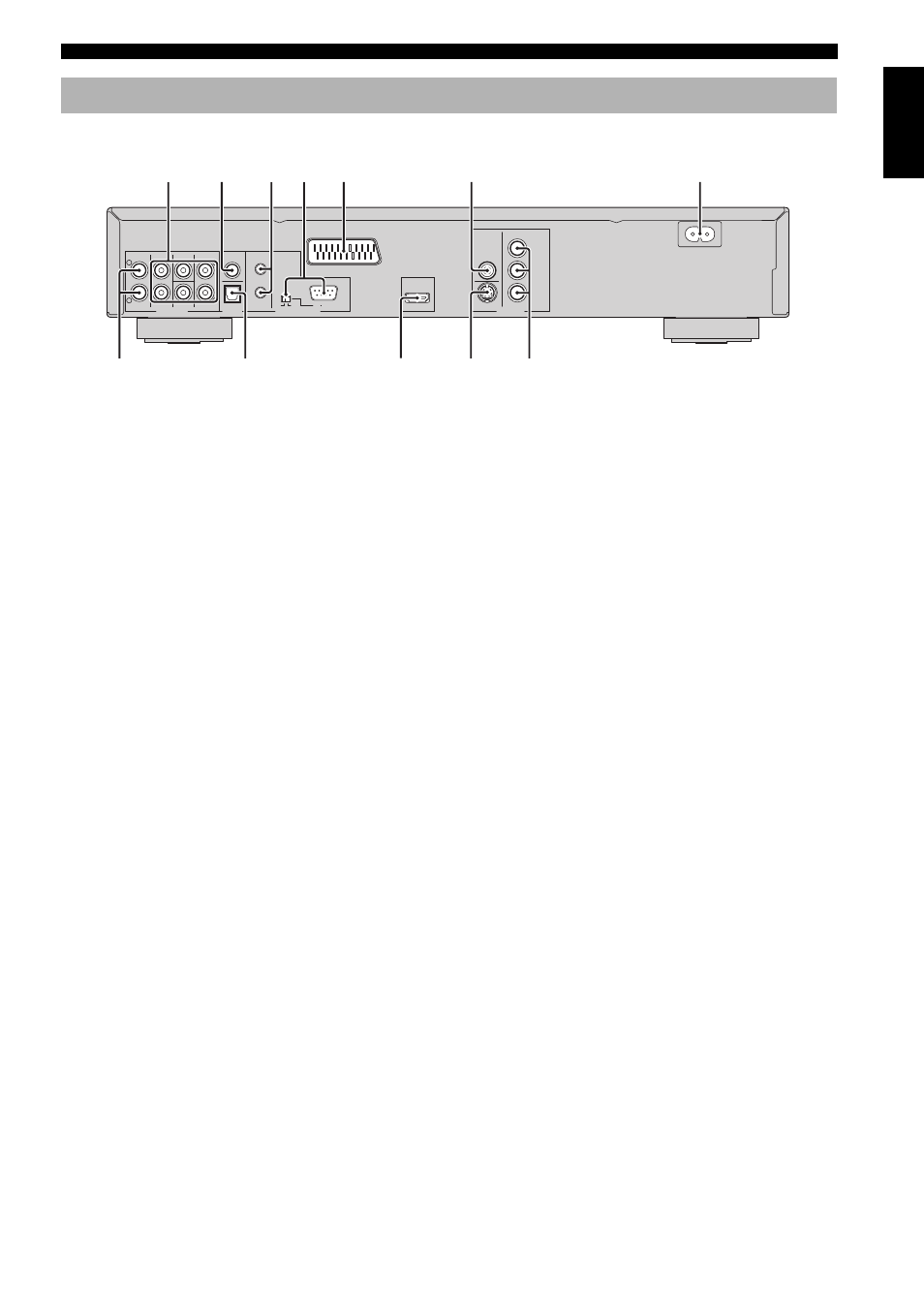

Rear panel
